Long life induction heating boiler

Features of induction heating boiler

   1, Small, light and easy to use.

   2, Easy to install and debugging, can operate immediately

   3, High frequency, products within 0.1mm thickness can be heated.

   4, High efficiency, can save 50% power compare to tube induction heating equipment.

   5, Safety, no 10KV voltage.

   6,Specialized output transformer and space transformer technology used. Flexible regulation, wide load matching and high reliability.

Technial parameters of WZP-160 induction heating boiler

1. Work power: 3 phase 380V+/-10%, 50-60HZ

2. Input voltage: 320V-420V can be changed, depend on your country's electric power

3. Input current: 6-160A

4. Input power: 3-85KW(power adjusted stepless, from 3 KW-90 KW)

5. Oscillation frequency: 15-30 KHZ(customzied,frquency auto tracking)

6. Heating capacity: 4.5kg/minute

7. Cooling water pressure: 0.3 MPA

8. Water temperature protection point: 50 degree celsius.

9. Size of geneartor: 850*600*1330 ;transformer:780*540*520mm
10.Weight: generator 147kgs transformer 108kgs

Applications of induction heating boiler

Heat treatment Class
1 The various hardware tools, hand tools, heat treatment. Such as pliers, wrenches, screwdrivers, hammers, axes and so on.
2 kinds of auto parts, motorcycle accessories high-frequency quenching. Such as: crankshaft, connecting rod, piston pin, crank pin, wheel, camshaft, valves, all kinds of rocker arm, rocker shaft; transmission of various gears, spline shafts, drive axle, a variety of small axes, a variety of fork and other high-frequency quenching.
3 power tools on the gears, shafts and other high-frequency quenching.
4 a variety of hydraulic components, pneumatic components of high frequency hardening heat treatment. Such as the piston plunger, rotor pump rotor on a variety of valves for the shaft, the gear pump gear, etc. quenching.

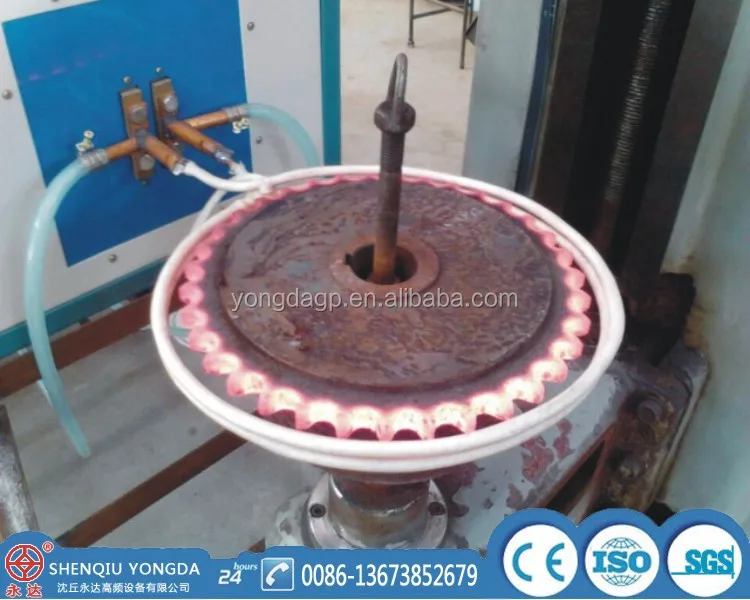

5 Heat treatment of metal parts. Such as the various gears, sprockets, all kinds of shafts, spline shafts, pins and other high-frequency quenching.
6 Machine tool industry guide, tools swallowtail quenching treatment.

Melting
melting gold, silver and copper.

Metal work pieces and induction coils showroom.

Packing for induction heating boiler

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support
