Brand Name: Yongda
Model Number: WZP-160
Place of Origin: Henan, China (Mainland)
High quality super audio frequency induction hardening equipment
Shenqiu Yongda high frequency equipment Co.,ltd establish in 1996 , and is a high-tech technology enterprise of Henan Province. Near 20 years induction heating machine production and marketing experience, what ever your metal work piece looks like, our experienced engineer will provide you the best solutions.
Company products:
Medium frequency induction heating machine IGBT and KGPS SCR
High frequency (Super audio ) induction heating machine
Induction hardening machine, induction forging machine,induction brazing machine, induction annealing furnace,
Electromagnetic induction heating equipment,Induction melting furnace ;
CNC hardening machine tool,Automatic feeding steel rods machine,
Round bar,steel pipe induction hardening and tempering equipment
Concrete pump pipe dedicated quenching machine,Hydraulic cylinder cladding equipment;
Closed cooling tower,etc.
Our work shop: here, every set machine before leaving our factory, will be strictly tesed by our technical persons.
Factory scene and debugging machine work shop
Advantage of induction hardening equipment
1.High efficient: energy saving,environmental protection
2.Heating fast:The fastest heating speed is less than 1 second
3.Heating wide: can heating variety of metal workpieces(according to different shapes of work pieces, replace removable induction coils)
4.Easy installation :the machine can be used,as soon as connected the power supply, induction coils, water inlet and outlet.
Small size, light weight ,easy to use
5. Simple operation , several minutes to learn.
6. Start fast, pass water and electric power can start heating
7.Low power consumption:can save about 40% energy than tradional HF tube furnace , save degree is relation with shpes of work pieces and induction coils.
8.Good effect: Heating very uniform (by adjusting the density of induction coils, makes every parts of work piece obtain the respective needs of temperature), warming up fast, less oxidation layer, surface got good gloss after heating .
9.Full protection: has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.
10.Temperature is adjustable, by setting heating time and the infrared thermometer, to control heating temperature of work pieces.Thus control heating temperature to a technology points , Can also increase the insulation function.
11.High security, eliminating the nearly million-Volt high voltage
Technial parameters of WZP-160 induction hardening equipment
1. Work power: 3 phase 380V+/-10%, 50-60HZ
2. Input voltage: 320V-420V can be changed, depend on your country's electric power
3. Input current: 6-160A
4. Input power: 3-85KW(power adjusted stepless, from 3 KW-90 KW)
5. Oscillation frequency: 15-30 KHZ(customzied,frquency auto tracking)
6. Heating capacity: 4.5kg/minute
7. Cooling water pressure: 0.3 MPA
8. Water temperature protection point: 50 degree celsius.
9. Size of geneartor: 850*600*1330 ;transformer:780*540*520mm
10.Weight: generator 147kgs transformer 108kgs

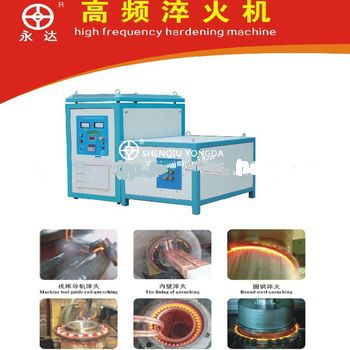

induction hardening equipment and control panel
super audio frequency induction hardening equipment application range:
Heat Treatment like annealing, normalizing, quenching, tempering.
What is the suitability range of workpieces
1. Various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel,aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Electric tools, such as gear and axes.
4. Machine tools, such as lathe deck and guide rail.
5. Various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Hardware molds, such as smallsize mold, mold accessory and inner hole of mold.
7. Other metal products.
Product quality certifications: ISO9001-2000
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.
Packing for induction hardening equipment:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
What’s your MOQ? |
Any quantity of machine will be accepted. MOQ:1 Set |
Which place your factory is located? |
We are located in Shenqiu County, Zhoukou city, Henan Province ,China |
How far from Beijing? I think it is more closer to Shanghai |
Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours. |
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing |
Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details. |
Do you have quality certifications? |
Yes, we got the ISO9001:2000 International quality management system certification in August,2001, |
How do you packing the machines? |
Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof |
More questions….? |
Updating… |
Thanks for your reading ! Welcome to contact us !
