IGBT high frequency induction mini gear hardening furnace

IGBT high frequency induction mini gear hardening furnace

FOB Price:

US 1200-13500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-160

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-160

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: Two wooden cases(plywood) for packing igbt induction furnace2.Inside filling with plastic foam for water proof and shockproof 3.Transport by sea,by air.
Delivery Detail: Within 10 days after 30% advance payment

Specifications

GBT high frequency induction mini gear hardening furnace

Product Description

Technial parameters of IGBT induction hardening furnace

Model	WZP-160
Work power	3 phase 380V+/-10%, 50-60HZ
Input voltage	320V-420V can be changed, depend on your country's electric power
Input current	6-160A
Input power	3-90KW(power adjusted stepless)
Oscillation frequency	10-50 KHZ
Cooling water pressure	0.3 MPA
Size of geneartor: Transformer	generator740403895mm transformer 735490465mm
Weight of generator ; transformer	55kgs; 74kgs
Water cooling protection point	Below 50 degree celsius

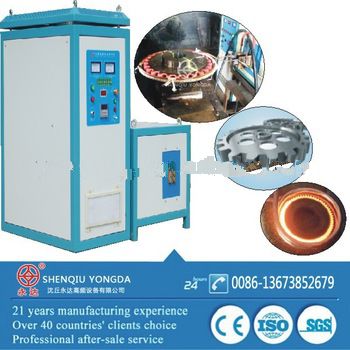

IGBT WZP-160 induction furnace and control panel

PS: The machine itself has many protection functions, over ten alarm lamps, such as over voltage, lower voltage, over current, water temperature is high, lack of water, lack of phase, when any of the lamps light, machine stop heating, prevent machine further damaged, until trouble shooting.

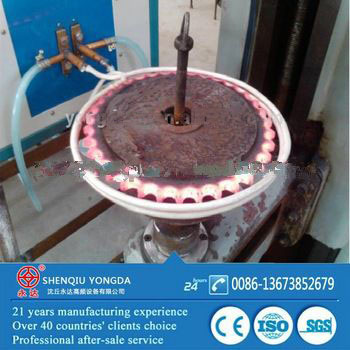

Application of IGBT induction hardening furnace

PS: Hardening (hardening depth :1-3mm)

1. Hardening for various hardware and tools, such as plier, wrench, hammer, ax, screwing tools and shear (orchard shear).
2. Hardening for various automobile and motorcycle fittings, such as crankshaft, connecting rod, piston pin, chain wheel, aluminum wheel, valve, rock arm shaft, semi drive shaft, small shaft and fork.
3. Hardening for various electric tools, such as gear and axes.
4. Hardening for machine tools, such as lathe deck and guide rail.
5. Hardening for various hardware metal parts and machined parts, such as shaft, gear (chain wheel), cam, chuck and clamp etc.
6. Hardening for hardware

We are at oversea exhibition

Product quality certifications: ISO9001-2000

Packaging & Shipping

Packing for igbt induction furnace:

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
