Super audio frequency induction industrial heating equipment

FOB Price:

US 1000-10000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-160

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-160

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Two wooden cases(plywood) for packing industrial heating equipment One for generator, one for transformer..Accessories: inducton coils,foot switch. installing and operating instructions. 3.Send by sea/sea/air/train/courier
Delivery Detail: Within 12 days after 30% advance payment

Specifications

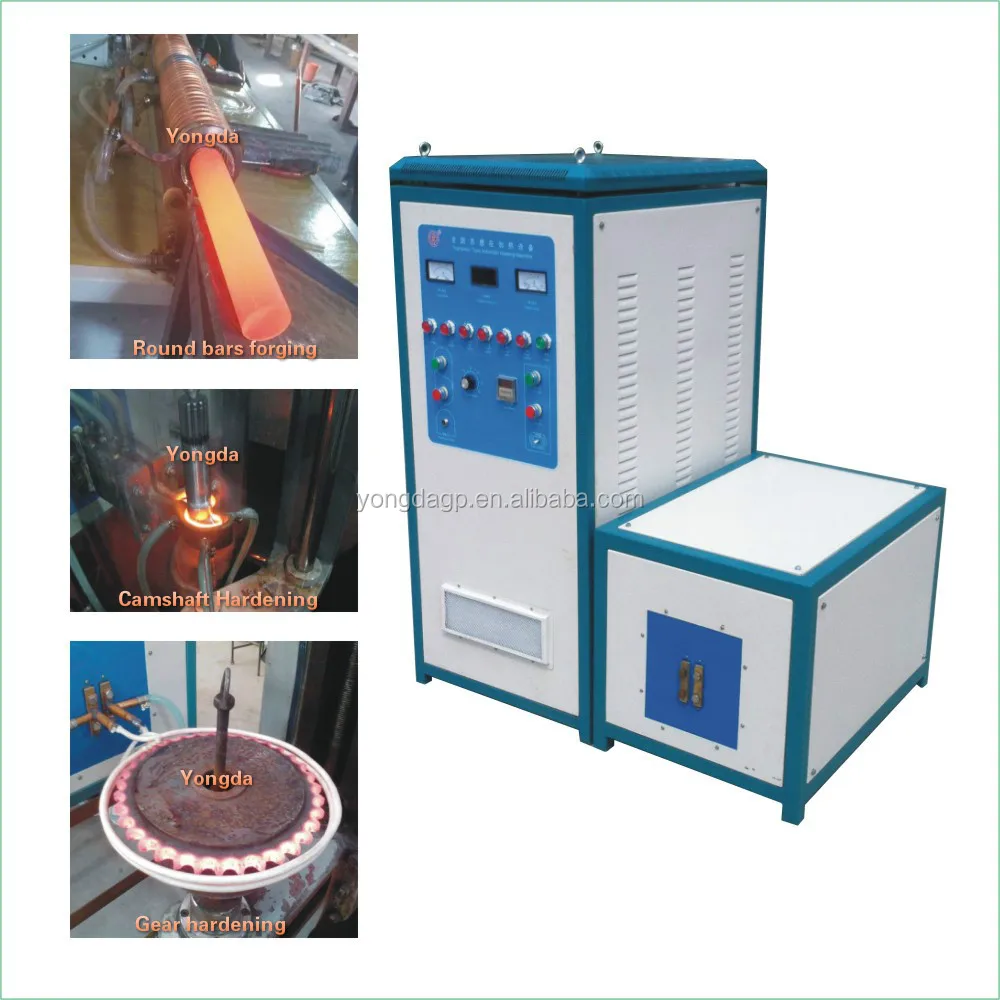

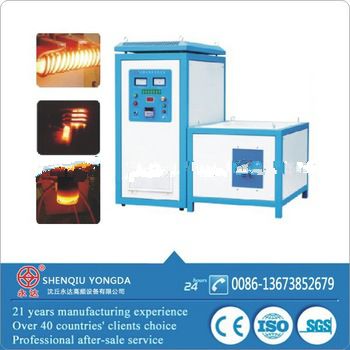

Super audio frequency induction industrial heating equipment

Product Description

My company's products to energy saving, environmental protection, safety, and efficient for the purpose of the brand building as an important strategic business initiatives to create a quality brand to brand to promote quality. We produced industrial heating equipment, used by international companies Siemens, Fujitsu, Motorola and other companies producing electronic components. This product which is small size, light weight, high efficiency, simple operation, easy installation, reliable and environmental friendly etc, with good after-sales service won the trust of customers.

1. adopts IGBT modules

2. Energy saving,environmental

3. ISO 9001 certification

4. Delivery fast,quality assured

5. Usage: induction heating metal rods ,steel billet for forging,forging,brazing,hardening etc.

Technial parameters of industrial heating equipment

Model	Input voltage	Input current	Oscillation frequency	Cooling water pressure
WZP-40	320-420V	2-40A	15-30KHZ	0.1MPA
WZP-60	320-420V	3-60A	15-30KHZ	0.2MPA
WZP-90	320-420V	4-90A	15-30KHZ	0.3MPA
WZP-120	320-420V	6-120A	15-30KHZ	0.3MPA
WZP-160	320-420V	6-160A	15-30KHZ	0.3MPA
WZP-200	320-420V	6-200A	15-30KHZ	0.3MPA
WZP-300	320-420V	6-300A	15-30KHZ	0.3MPA
WZP-400	320-420V	6-400A	8-15KHZ	0.3MPA
WZP-500	320-420V	6-500A	8-15KHZ	0.3MPA

Advantages of industrial heating equipment

* Adopting IGBT module;

* Overcurrent, overvoltage, phase-lacking and overheat alarm protection;

* Small size, energy saving, rapid heating, 1000°C in seconds;

* No flame, quite safe;

* More efficient, above 90%;

* Able to continuously work for 24h, 100% work load rate;

* Simple installation and easy operation;

* Configurable induction coils;

* Adjustable power.

Application of industrial heating equipment

1, through thermal forming
A, all kinds of standard parts, fasteners, machinery parts, hardware tools, straight shank twist hot upsetting, hot.
B, metal heat annealing. Such as: tensile steel tube, pipe, smashed head; wire, heating wire nail; stainless steel annealed, rose type.
2, heat treatment
Various types of hardware, electrical, hydraulic, pneumatic components, automobiles, and motorcycle parts and other mechanical parts of the surface of the metal, bore, in part or in whole quenching. Such as: hammer, knife, scissors, pliers and various types of shafts, cams, sprockets, gears, valves, ball pin, large-scale Machine Tool, ductile iron quenching.
3, brazing
Various types of carbide blades, turning, milling, planer, reamer, diamond saw blade, saw welding; grinding, drilling, cutting welding; brass, copper, stainless steel and other metal materials, the composite bottom of the pot Welding.
4, metal melting: melting gold, silver and copper.
5, the other heated areas
Plastic pipe, cable, wire heating film; food, beverage, pharmaceutical industry uses aluminum foil.

Metal work pieces and induction coils showroom.

Our workshop: debuging industrial heating equipment

Packaging & Shipping

Packing for industrial heating equipment

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Our Services

1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support

FAQ

What’s your MOQ?	Any quantity of machine will be accepted. MOQ:1 Set
Which place your factory is located?	We are located in Shenqiu County, Zhoukou city, Henan Province ,China
How far from Beijing? I think it is more closer to Shanghai	Our factory is near both and Shanghai. We have office in Zhengzhou, we can pick up you at Zhengzhou CGO airport,and then to our factory via expressway about two hours.
We need to see some more videos for production line and also pictures of your factory, water drawing and panel drawing	Well, we have many videos show our customer’s machine working scene(Various of applications: forging,hardening, brazing, shrink fitting, melting and hot coating etc. According to your work piece processing requirements,) send you the corresponding video link or send by email. 2. Yes, we can provide you factory pictures and machine water connection and control panel details.
Do you have quality certifications?	Yes, we got the ISO9001:2000 International quality management system certification in August,2001,
How do you packing the machines?	Standard export wooden cases(plywood) Usually every set machine will be used two wooden cases: one for packing induction heating generator, one for packing transformer. Inside will be filled with plastic foam for waterproof and shockproof
More questions….?	Updating…

Contact Me

Thanks for your reading ! Welcome to contact us !

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.

Welcome everyone to visit us and negotiation business !
