Steel forging furnace electric heating equipment

Steel forging furnace electric heating equipment

FOB Price:

US 1000-35000 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

yongda

Products Model:

IGBT 200KW/2-10khz

Products Details
Company Profile

Quick Details

Brand Name: yongda

Model Number: IGBT 200KW/2-10khz

Place of Origin: Henan, China (Mainland)
Condition: New
Type: Induction Furnace
Usage: billet forging
Voltage: 320-420V ( can be changed )
Power(W): 100-1500KW
Certification: ISO9001:2000
Warranty: 12 months
After-sales Service Provided: Engineers available to service machinery overseas
subject: electric heating equipment
usage: square and round steel forging, copper rods forging
Rated power: 10-200KW
Oscillation frequency: 4-10 KHZ (Customized)
core parts: IGBT Modules
Cooling method: Water cooling machine
accessories: induction forging furnace, or coils
warranty period: one year free repalce spare parts
technical suppot: provide long -terms support
sevice: long life

Packaging & Delivery

Packaging Details: 1.Wooden cases(plywood) for packing electric heating equipment 2.Send by sea/sea/air/train/courier
Delivery Detail: Shipped in 40 days after payment

Specifications

Steel forging furnace electric heating equipment

Technial parameters

Technical parameters of igbt medium frequency electric heating equipment

Model	Input voltage	Output power	Oscillation frequency (KHZ)	Cooling water amount (T/H)	Cooling water pressure (MPA)
IGBT100KW/4-10KHZ	3-380V	100KW	4-10KHZ	3	0.2-0.3MPA
IGBT160KW/4-10KHZ	3-380V	160KW	4-10KHZ	4	0.2-0.3MPA
IGBT200KW/4-10KHZ	3-380V	200KW	4-10KHZ	5	0.2-0.3MPA
IGBT250KW/4-10KHZ	3-380V	250KW	4-10KHZ	6	0.2-0.3MPA
IGBT350KW/4-10KHZ	3-380V	350KW	4-10KHZ	8	0.2-0.3MPA
IGBT400KW/4-10KHZ	3-380V	400KW	4-10KHZ	12	0.2-0.3MPA
IGBT500KW/4-10KHZ	3-380V	500KW	4-10KHZ	15	0.2-0.3MPA

1. Power consumption saving:generally saving 10%-20% energy than SCR medium frequency devices.
2. Full protection:over voltage, lack of water,over current,over heating, lack of phase, etc. sound and light alarm system
3. Application range:diameter below 200mm rods tempering, forging,extrusion etc.

200-600KW new type medium frequency induction heating equipment is based on modern international advanced electric technology theory, adopts Infineon IGBT modules,with strict process technology requirements to produce high-tech products.The product main circuit adopts three-phase bridge rectifier circuit without adjusting voltage, after capacitor filter, half-bridge inverter .main circuit is series resonance,duty cycle adjustable power.

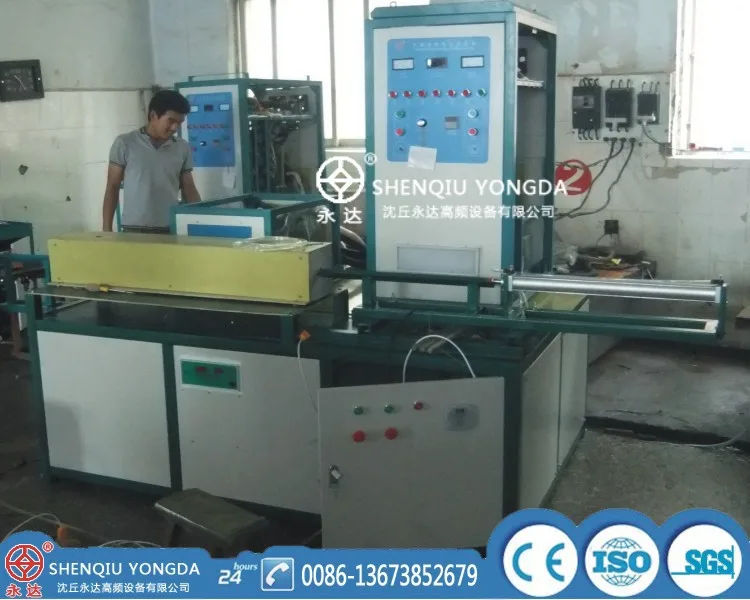

Electric heating equipment generator

Applications

Medium frequency igbt electric heating equipment is mainly used for heat diameter 40-70mm steel rods . Super sonic frequency can heat diameter below 40mm, and kgps electric forging equipment can heat diameter 70-121mm steel rods , But there is no strict boundaries.

There are two type :

one is: generator and induction coils

Another type : is generator and forging furnace

Automatic feeding machine is optional.

Our Services

1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support

About Us

Oversea customers visit us

Our workshop for testing machine

Contact Information

Various of metal parts heating, forging ,heat treatment, shenqiu yongda electric heating equipment is your best choice, high quality, low price.,complete service.

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
