High frequency induction small welding/brazing machine

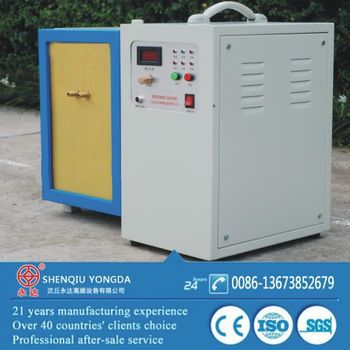

Induction small welding/brazing machine:generator and transformer

Accessories of each machine:induction coils,foot switch,installing and operating instructions

Technial parameters of induction welding/brazing machine

Advantages of induction small welding/brazing machine

1.High efficient: energy saving,environmental protection
2.Heating fast:The fastest heating speed is less than 1 second
3.Heating wide: can heating variety of metal workpieces(according to different shapes of work pieces, replace removable induction coils)
4.Easy installation :the machine can be used,as soon as connected the power supply, induction coils, water inlet and outlet.
Small size, light weight ,easy to use
5. Simple operation , several minutes to learn.
6. Start fast, pass water and electric power can start heating
7.Low power consumption:can save about 40% energy than tradional HF tube furnace , save degree is relation with shpes of work pieces and induction coils.
8.Good effect: Heating very uniform (by adjusting the density of induction coils, makes every parts of work piece obtain the respective needs of temperature), warming up fast, less oxidation layer, surface got good gloss after heating .
9.Full protection: has over voltage,over current,temperature is over high,lack of water, lack of phase,etc, alarm lamps indicators. can automaticly control and protection the machine itself.
10.Temperature is adjustable, by setting heating time and the infrared thermometer, to control heating temperature of work pieces.Thus control heating temperature to a technology points , Can also increase the insulation function.
11.High security, eliminating the nearly million-Volt high voltage

The application of induction welding/brazing machine

1. Brazing categories:
1.1 welding diamond saw blade, carbide saw blade welding and diamond cutting tools, grinding tools, drilling welding.
1.2 carbide cutting tools for machining welding. Such as turning, milling cutter welding.
1.3 mining tools, welding, such as "one" bits, pillar gear drill bits, dovetail coal drill bits, drill rods riveting, all kinds of shearer, a variety of shearer, boring machine pick a variety of welding.
1.4 The welding of various wood working tools, such as various woodworking planer, milling, and welding a variety of woodworking drill.

More applications of induction heating machine

Product quality certificatioins: ISO9001-2000

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996, which belongs to high-tech enterprise in Henan Province,China. We are located in Shenqiu County, Zhoukou City.  We professionally dedicated to R&D,production of HF,SSF,MF induction heating equipment,adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions. We are the leader of domestic induction heating field, and got the ISO9001:2000 international quality management system certification in August, 2004. Up to now, we has 83 office in domestic ,products hot sale , and also exported to Europe,America,and Southeast Asia etc. other regions.

Packing for induction welding/brazing machine:

Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Size: generator 590*330*650mm, transformer 500*360*455mm
Weight: generator 41kgs ,transformer 37kgs

1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need
9. Provide install and technology instruction by sending drawings, email, or telephone,video.
10.If you need, will arrange one engineer to your place,instruct install machine and training operators.
11.Excess warranty period(12 months warranty), you can buy the spare parts from us with special discount price.
12.Provide long-terms technical support.

Thanks for your reading ! Welcome to contact us !
