Stable performance IGBT Continuous brazing furnace

Stable performance IGBT Continuous brazing furnace

FOB Price:

US 1200-4500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-36

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-36

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Two wooden cases for packing continuous brazing furnace 2. G.W 90kgs , 0.35CBM 3. Transport by air/sea/express/train
Delivery Detail: 3-5 days after your order

Specifications

Stable performance IGBT Continuous brazing furnace

Product Description

Yongda continuous IGBT induction brazing furnace WZP-36

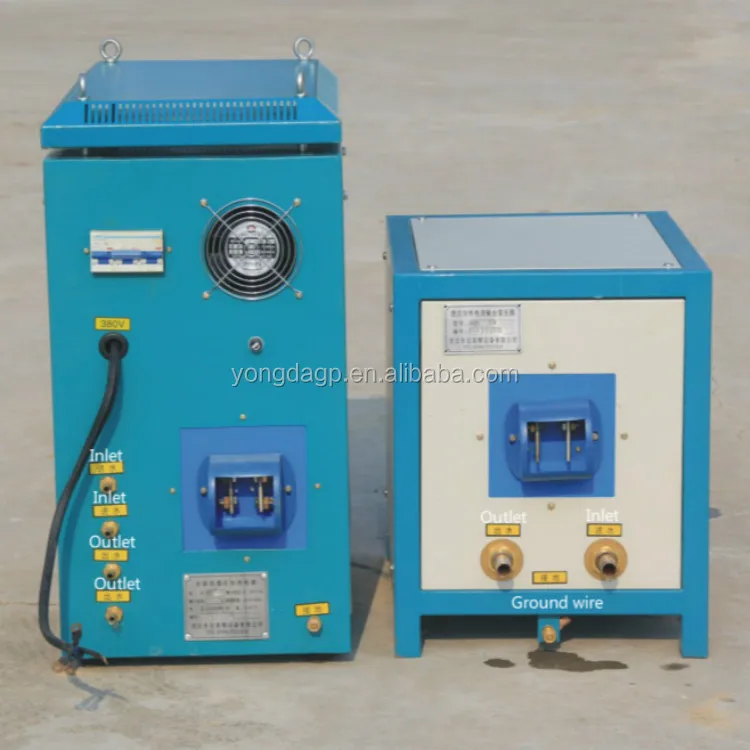

Machine rear

Applications of continuous brazing furnace: WZP-36

1. refrigeration equipment, copper tube brazing
2. the relay, water pressure meter etc. brazing
3. brazing transformer, motor copper wire
4. Induction brazing light accessories, musical instruments and other accessories
5. sanitary ware copper tube, iron tube brazing

Technical parameters of WZP-36 induction welding equipment

Model	Work power	Output power	Oscillation frequency	Output current	Cooling water pressure	Size	Weight
WZP-36	three phase 380V+/-10% 50-60HZ	3-20KW	10-80KHZ	3-40A	0.1MPA	generator 410×290 × 500mm transformer 310×260×380mm	40kgs; 45kgs

Model

Work power

Output power

Oscillation frequency

Output current

Cooling water pressure

Size

Weight

WZP-36

three phase 380V+/-10% 50-60HZ

3-20KW

10-80KHZ

3-40A

0.1MPA

generator

410×290 × 500mm

transformer 310×260×380mm

40kgs;
45kgs

Yongda WZP-60/90/120 is more suitable for the following jobs brazing

Model	Voltage	Output current	Output power	Oscillation frequency	Cooling water pressure
WZP-60	3 phase 320-420V ,50-60HZ	4-60A	6-40kw	10-80KHZ	0.2MPA
WZP-90	3 phase 320-420V ,50-60HZ	4-90A	6-50kw	10-80KHZ	0.2MPA
WZP-120	3 phase 320-420V ,50-60HZ	4-120A	6-70kw	10-80KHZ	0.2MPA

1. Diamond tools, abrasives brazing
2. hard alloy ,saw baldes welding
3. lathe tool , milling cutter, reamer brazing
4. drill bits, coal bits brazing
5. various of machinery parts and components brazing

Packaging & Shipping

Packing for continuous brazing furnace

Wooden cases (plywood) . As your required.

Inside,will be filled with plastic foam,for waterproof and shockproof.

Accessories: induction coils,foot switch and installing and operating instructions

Shipping: by sea LCL(less than container load) or by air.

Our Services

Technical communication and discusstion with engineer

Recommend the best machine model

One year warranty service

Provide long-terms technical support

Contact Information

If you are interest in IGBT type continuous brazing furnace, please contact us by the following methods:

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.

Welcome everyone to visit us and negotiation business !
