China manufacturer supply high quality diamond brazing machine

China manufacturer supply high quality diamond brazing machine

FOB Price:

US 800-2500 / Set

Min.Order Quantity:

1 Set/Sets

Supply Ability:

500 Set/Sets per Year

Port:

Shanghai, Qingdao,Tianjin, Guangzhou or as you request

Place of Origin:

Henan, China (Mainland)

Payment Terms:

L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal,cash

Brand:

Yongda

Products Model:

WZP-36

Products Details
Company Profile

Quick Details

Brand Name: Yongda

Model Number: WZP-36

Place of Origin: Henan, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Wooden cases(plywood) for packing diamond brazing machine.One for generator, one for transformer. 2.Transport by sea or by air in Shanghai port
Delivery Detail: Shipped in 5 days after payment

Specifications

China manufacturer supply high quality diamond brazing machine

Product Description

Introduction of high quality diamond brazing machine

YONGDA high frequency equipment is a device adopt for modern electronic module as key part of converter, through convert 50/60Hz power current into current with at different frequency band, which produces strong electromagnetic field in inductor to heat metal in a very short time. it can widely used in hardening, brazing, forging, melting, annealing, and some other industrial metal heating process.

Diamond brazing machine
Our diamond brazing machine uses a series resonant circuit, low-voltage, high-current, high-frequency power by high-frequency transformer output resonance; equipment for my company's first generation products, using MOSFET power devices and our first-generation variable flow control technology, equipmentvery simple structure, high reliability, easy maintenance, low maintenance, customer, and is currently the most widely used one of the devices.

Features of our diamond brazing machine:
1.Under the same conditions, the effect of high-frequency power-saving double than traditional tubes.
2.Design with a 100% load, continuously 24 hours a day, can be equipped with infrared temperature measurement, automatic temperature control, improve the heating quality and simplify the manual operation.
3.With over-current, over-voltage, under-water, phase failure, load discomfort state, the provision of higher reliability and durability.

Technial parameters of diamond brazing machine

Model	Input voltage	Input current	Input power	Oscillation frequency	Cooling water pressure
WGH-IV-16	Single phase 220V	2-30A	3-16KW	10-50KHZ	0.1MPA
WZP-36	320-420V	3-36A	3-20KW	10-50KHZ	0.1MPA
WZP-60	320-420V	3-60A	3-35KW	15-30KHZ	0.2MPA
WZP-90	320-420V	4-90A	3-50KW	15-30KHZ	0.3MPA
WZP-120	320-420V	6-120A	3-65KW	15-30KHZ	0.3MPA

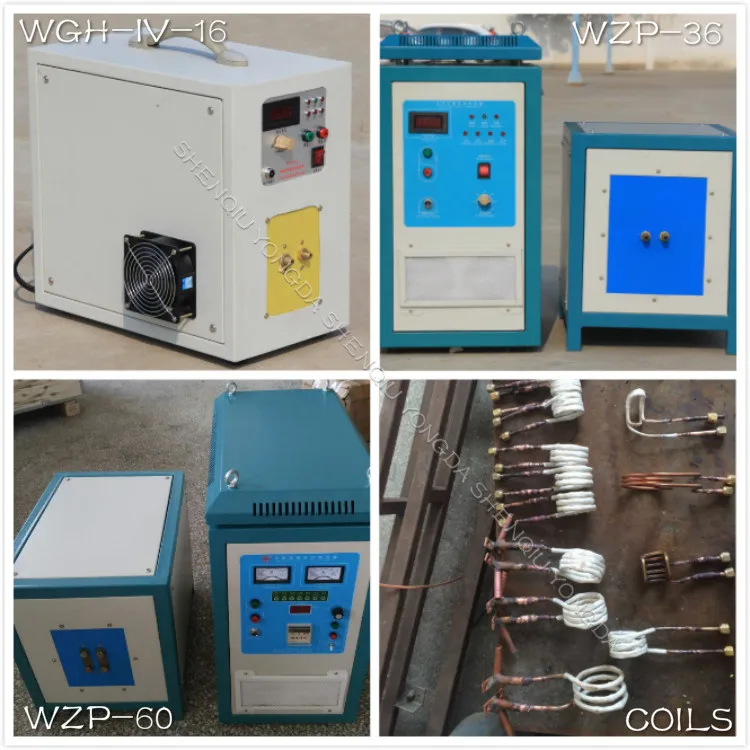

Induction diamond brazing machine models

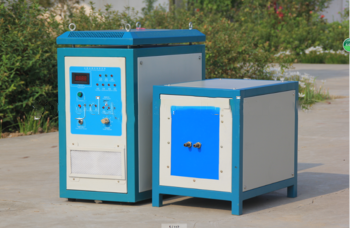

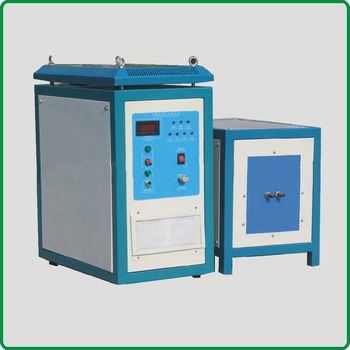

Picutres of induction brazing machine

Functions of controly panel:

Shenqiu Yongda High Frequency Equipment Co., Ltd. was founded in 1996,which belongs to Henan high-tech enterprise ,was located in No.65, Liufu Village Liufu town, Shenqiu County, Henan ,China .
We have international trade department in Zhengzhou city. East to international airport (CGO), besides, high way, high speed rail, transport is very convenient.

We professionally dedicated to R & D, produce and sale high frequency, super audio frequency, medium frequency induction heating equipment: WGH ,WZP and KGPS series, CNC quenching machine tool and automatic feeder machine etc. We adhering to the spirit of innovation, mean while strengthening cooperation with domestic well-known universities and research institutions.

Our machine is mainly used for heating metal, induction forging, hardening, brazing, annealing, melting , shrink fit, etc. other fields.

Yongda High frequency Equipment Co.,Ltd is the leader of induction heating field and biggest full solid state induction heating equipment manufacturer in China. Our products has got CE and ISO certification and hot sale at home and abroad. Up to now, we already exported to Europe, America, and Southeast Asia etc. other regions.
