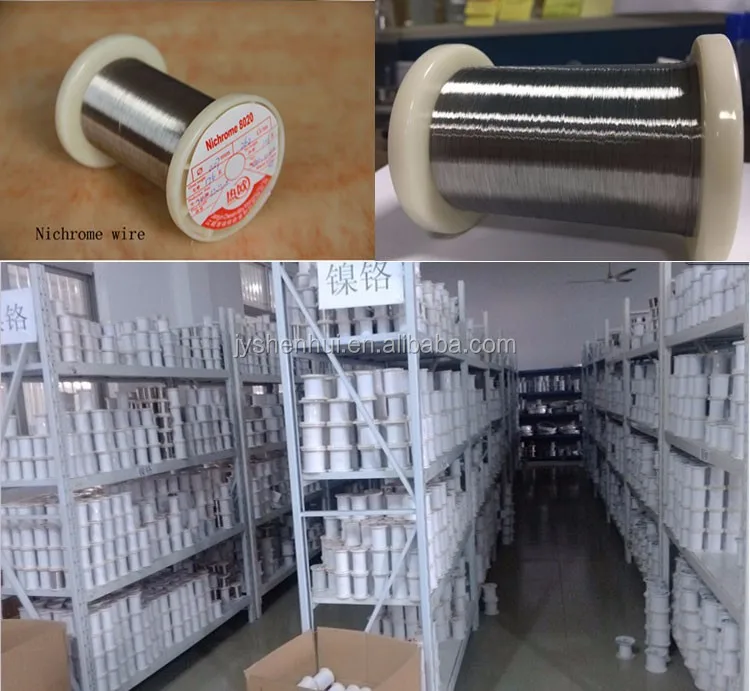

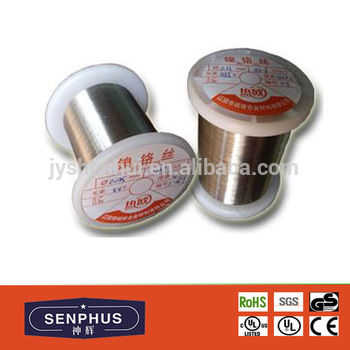

Cr20Ni80 Nickel Chrome high resistance electric heating wire

The nickel-chrome and nickel-chrome-iron alloy wires are widely used as the high resistance alloy for electrical heating and wire-wound resistors in metallurgical industry, chemical industry and electrical industry, etc.

This alloy wire has higher electrical resistance coefficient, good anti-oxidation and anti-corrosion performanc, and it also has good ,mechanical workability and weldability, with a high strength at high temperature.

Data

Mainly products of alloy wires of Senphus

1.Copper Nickel alloy series:

CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi44 etc.

2.Precision Resistance wires:

Constantan-type(6J40); diameter from 0.020mm~1.600mm

Manganin-type(6J8,6J12,6J13); diameter from 0.020mm~6.300mm

Karma(Ni-Cr-Al-Fe)(6J22); diameter from 0.018mm~1.50mm

3.High resistance series:

Cr20Ni80, Cr30Ni70, Cr15Ni60, Cr20Ni35, Cr20Ni30,Cr20Ni20 etc.

Diameter from 0.018mm~1.600mm

4.Monel alloy wire & Pure Nickel Wires:

Ni66Cu30(Monel400) and Ni70Cu28

N6(Ni>99.5%),N8(Ni>98.5%)

5.PTC Thermistor Alloy wires:

P-4500, P-4000, P-3800, P3500, P3000, P-2500

6.Nitinol wires dia.from 0.08mm~5.00mm

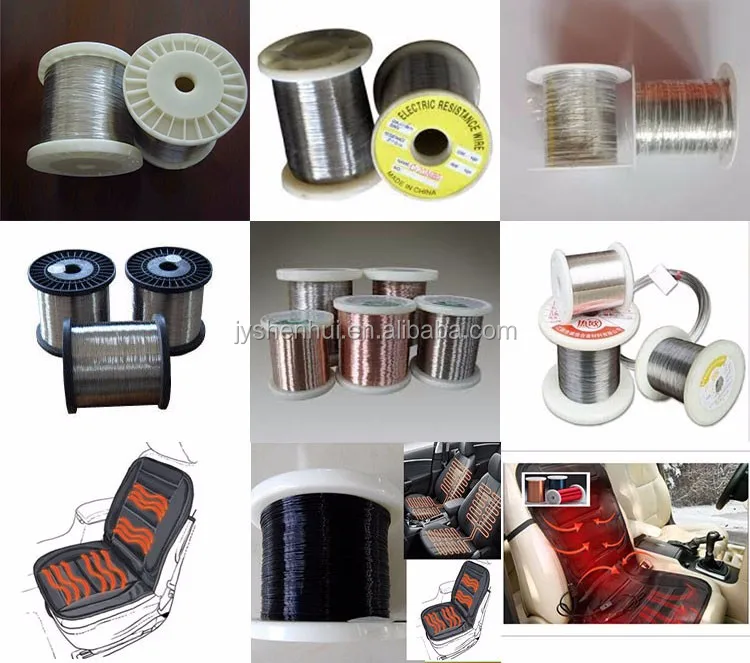

7.Stranded wires(CX1201, CX1207) used for heating wire, heating cable and car seat etc.

8.Thermocouple wires:

Nicr-NiSi(Type K) KP→Ni:Cr≈90:10

              KN→Ni:Si≈97:3 temperature range(-200~1300℃)

NiCr-CuNi(Type E) EP→Ni:Cr≈90:10

               EN→Cu:Ni≈55:45 temperature range(-200~900℃)

Fe-CuNi(Type J) temperature range(0-750℃)

Cu-CuNi(Type T) temperature range(-200~350℃)

NiCrSi-NiSiMg(Type N)  NP→Ni:Cr:Si≈84.4:14.2:1.4

                    NN→Ni:Si:Mg≈95.5:4.4:0.1 temperature(-200~1300℃)

9.Thermocouple extension wire:

Mainly products:Type NX, EX, JX, TX, SC/RC, KCA, KCB. Widely used in temperature measurement system

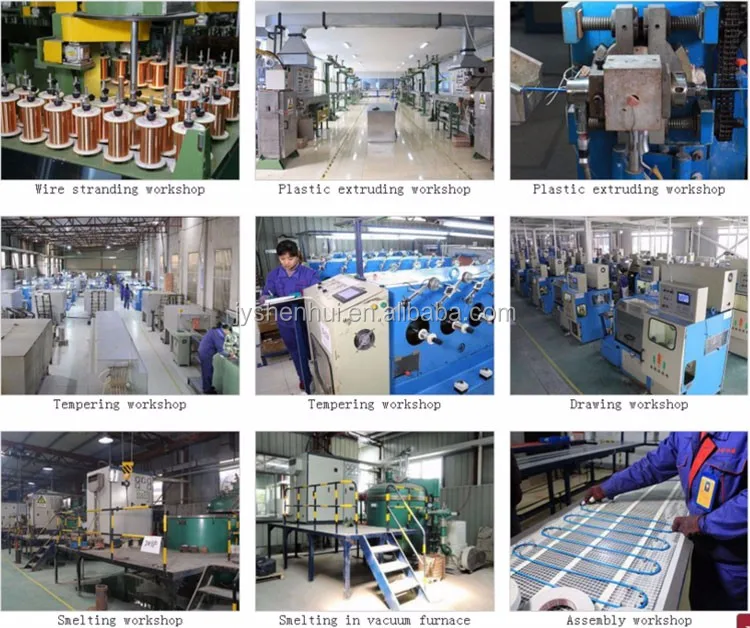

Company

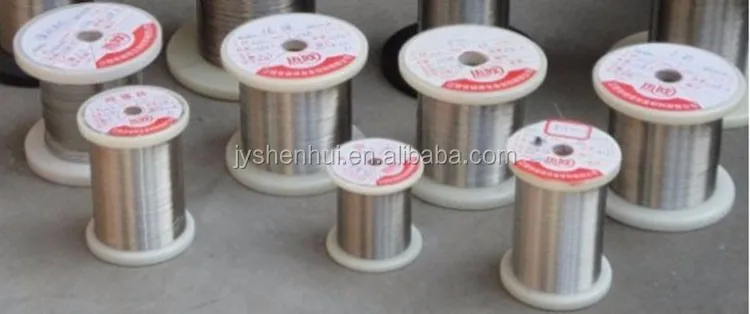

Packing with spool/bobbin
1. usually, 0.00mm to 0.14mm,  the spool is 80mm diameter.
The spool have less of 2 kg of weight
2. 0.15 to 0.4mm, the spool is 100mm diameter.
The spool have less of 2 kg of weight.
3. more than 0.45mm nichrome wire,  the spool is 120 mm diameter
The spool have less of 3 kg of weight.

Packing with Carton or Wooden Case
For  1 to 100 kgs, packed by carton, each carton less than 20 kgs
For  more than 100kgs, packed by wooden case usually

The Lead Time
For 1 to 100 kgs,  7 to 10 days usually
For 100 to 500 kgs, 12 days usually
For more than 500 kgs, 16 days usually
