senphus floor heating cable heating wire

senphus floor heating cable heating wire

FOB Price:

US 0.6-2 / Meter

Min.Order Quantity:

10 Meter/Meters

Supply Ability:

100000 Meter/Meters per Month

Port:

shanghai

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

Senphus(*OEM)

Products Model:

SHDN

Products Details
Company Profile

Quick Details

Brand Name: Senphus(*OEM)

Model Number: SHDN

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: coil, plastic film, caron in pallet or wooden box
Delivery Detail: 7 DAYS after receiving the deposit

Specifications

Product Description

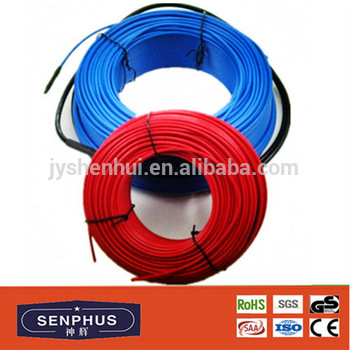

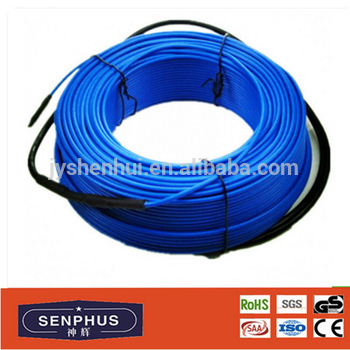

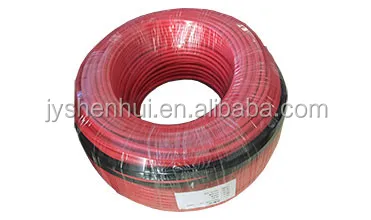

18W/m Senphus underfloor heating cable, heating wire

Voltage: 24V, 110V, 120V, 220V, 230V, 240V, etc
Length: 5m, 10m, 15m,.....220m
Power: 10w/m, 15w/m, 16w/m, 17w/m, 18w/m, 20w/m, 23w/m, 30w/m, 40w/m, etc

The color and length of cable and power cord are determined by the customers

The material of shied, jacket, insulation etc can be changed by your requirements

Waterproof grade / Dust level *IP 6 8*

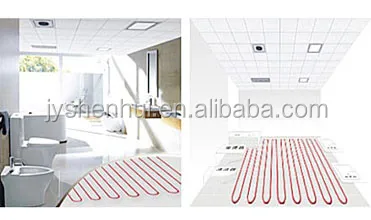

Senphus floor heating cable is a floor heating system that allows contractors to instantly make on-site adjustments to the floor heating coverage for any room including those with curves and angles.

it can be controlled using the same programmable and non-programmable thermostat options as Senphus under floor heating Mats.
it also can be used to heat wet areas such as shower beds and benches or saunas.

Model	Power voltage (v.)	Frequensy(Hz.)	Linear power (w/m)	Cable length(m)	Total Power(w)
SHDN-18.5-DD-10M	230	50	18.5W/M	10	185
SHDN-18.5-DD-15M				15	277.5
SHDN-18.5-DD-20M				20	370
SHDN-18.5-DD-25M				25	462.5
SHDN-18.5-DD-30M				30	555
SHDN-18.5-DD-35M				35	647.5
SHDN-18.5-DD-40M				40	740
SHDN-18.5-DD-45M				45	832.5
SHDN-18.5-DD-50M				50	925
SHDN-18.5-DD-60M				60	1110
SHDN-18.5-DD-70M				70	1295
SHDN-18.5-DD-80M				80	1480
SHDN-18.5-DD-90M				90	1665
SHDN-18.5-DD-100M				100	1850
SHDN-18.5-DD-120M				120	2220
SHDN-18.5-DD-140M				140	2590
SHDN-18.5-DD-160M				160	2960
SHDN-18.5-DD-180M				180	3330
SHDN-18.5-DD-200M				200	3700
SHDN-18.5-DD-220M				220	4070

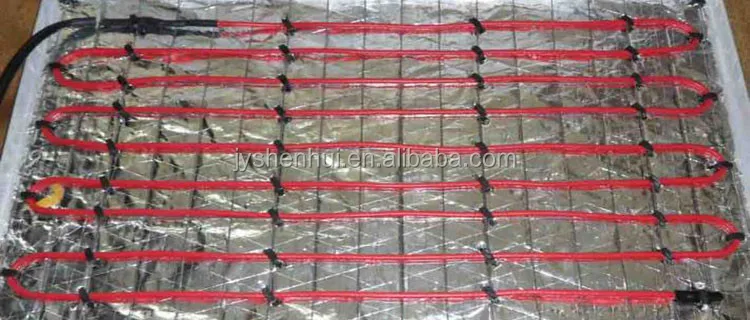

Installation

step 1: clean up the installation site, make sure the ground is flat

step 2: covered with insulation materials, keep it with a good insluation effect

step 3: covered with a layer of aluminum foil, transfer the heat faster

step 4: covered with steel mesh with fixed lattice width, to ensure the installation of heating cable more carefully

step 5: fix the heating cable on the steel mesh

step 6: Both ends of the heating cable must be below the temperature control switch

Jiangyin Senphus Electrical Material Co.,Ltd is the only one floor heating cable in China which has his own alloy resistance material company.

Our main products:

1, underfloor heating system: floor heating cable, floor heating mats

2, anti-freeze heating cables: water pipe heating cable, roof& gutter de-icing cable

3, Heating wires: PVC heating wire, Silicone rubber heating wire, FEP heating wire, electric blanket heating wire, car seat heating wires, etc.

4, silicone rubber heater: UL silicone rubber heater, drum heaters

5, Alloy materials:
A,Nichrome, NiCr8020, NiCr6015, NiCr7030, NiCr3520, NiCr3020, NiCr2025, etc.
NiCr 80 Also called: Chromel A, Nikrothal 80, N8, Nichrome V, Tophet A, Resistohm 80, Cronix 80, Alloy A, MWS-650, Stablohm 650
NiCr 60 Also called: Chromel C, Nikrothal 60, N6, Tophet C, Resistohm 60, Cronifer II, Nichrome Alloy C, MWS-675, Stablohm 675

B,Copper Nickel Alloys (CuNi Alloys):CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40, CuNi44 (constantan)

C.Pure nickel wire: N6, N8

D.PTC thermistor alloy wire: P-4500, P-4000, P-3800, P-3500, P-3000, P-2500

E.Stranded wire: nichrome alloy, nickel strand wire and other alloy material.

F.Thermocouple wire: Type K, N, E, J, T, S. Thermocouple cables

G.Thermocouple compensation alloy : KPX, KNX, EPX, ENX, TNX, NPX, NNX, JPX,JNX,etc
