solar panel heating kit 110V heating systems

solar panel heating kit 110V heating systems

FOB Price:

US 1.2-6.05 / Meter

Min.Order Quantity:

1 Meter/Meters

Supply Ability:

10000 Meter/Meters per Month

Port:

shanghai for solar panel heating kit 110V heating systems

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

senphus

Products Model:

SHHM-SP

Products Details
Company Profile

Quick Details

Brand Name: senphus

Model Number: SHHM-SP

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: cartons normally for solar panel heating kit 110V heating systems
Delivery Detail: 15 days after receiving the deposit

Specifications

solar panel heating kit 110V heating systems

specification

1.solar panel defrost protection / snow melting

2.110V, 0.95*1.6m, 246W or you customize the parameter

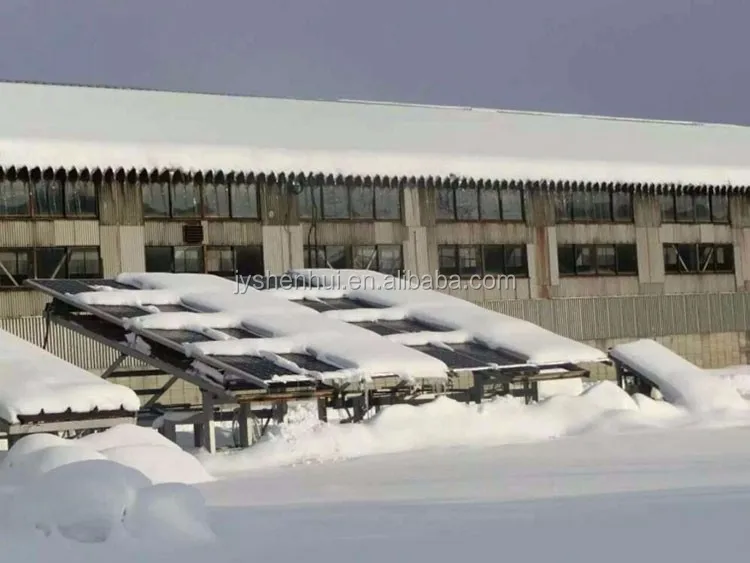

The Solar Panel Snow Melting System is designed to prevent Ice buildup.

For Dofferemt requirements of customers, Senphus provides two types production: heating mat and heating cable

Product Description

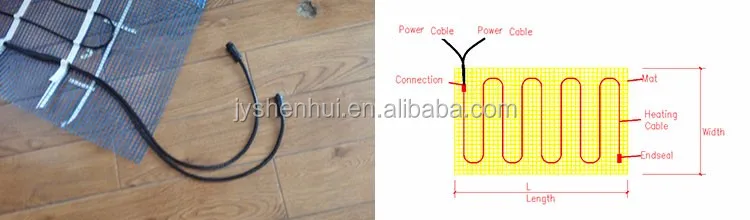

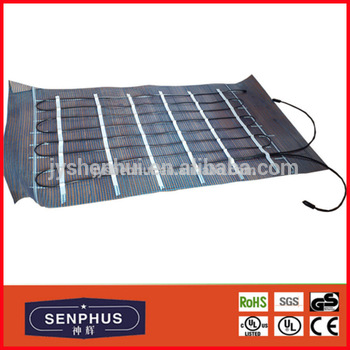

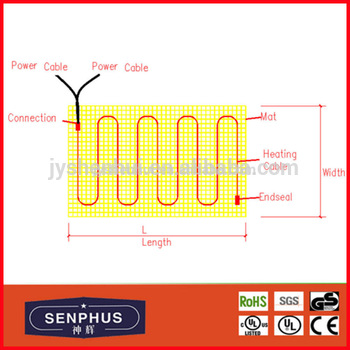

Install the panel mat under the solar panel, easily installation makes perfect snow melting effect.

1.There is no ice and snow on the reverse side of solar panel. Do not us this cable to melt snow and ice that has already formed. To prevent future ice buildup, you can install the deicing cable once the ice and snow have melted and before the next winter season.

2. Temperature requrements: In general, the temperature to install the cable should above 5℃(41 ℉)

Two power cable connection design, male and female plug makes The panels are connected in parallel with each other. Even if one of the panel heating mat is short-circuited, it will not affect other operations.

Technical Specification for Materials

1.Conductor	Alloy (Temperature rating 300℃)
2.Insulation	PVC (Temperature rating 105℃)
3.Screen	Pure copper wire (Temperature rating 220℃)
4.Outer Jacket	Antifreeze PVC (-40℃--105℃)
5.Maximum heat temperature	60℃

Technical Data

Model	SHHM-140*920	SHHM-1400*743
Power	164	131.2
Current(50HZ/60HZ)(AMP)	0.78	0.62
Length(M)	10	8
Resistance@20℃+10/-5%	268.90	336.13
Meter Power(W/M)	16.4	16.4
Size	7.0mm*5.3mm	7.0mm*5.3mm
Insulation Jacket	PVC	PVC
Mat size	1400mm*920mm	1400mm*743mm
Cold cable length	1M	1M

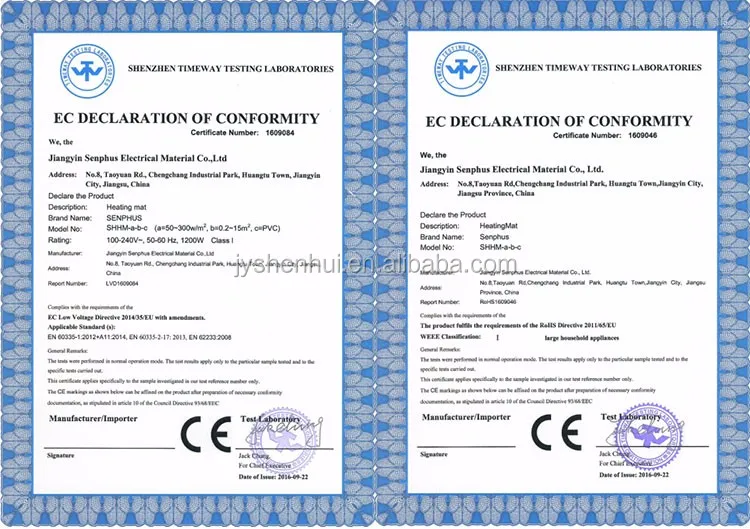

Certifications

Welcome to visit our company and cooperate with us

Any detail informations please contact me freely

Phone/whatsapp: +86-15006128064

If you are interested in the new designed solar panel heating films, please feel free to contact me, and i will send the product instruction include all the details for you.

Jiangyin Senphus Electrical Material Co.,Ltd is the only one floor heating cable in China which has his own alloy resistance material company.

Our main products:

1, underfloor heating system: floor heating cable, floor heating mats

2, anti-freeze heating cables: water pipe heating cable, roof& gutter de-icing cable

3, Heating wires: PVC heating wire, Silicone rubber heating wire, FEP heating wire, electric blanket heating wire, car seat heating wires, etc.

4, silicone rubber heater: UL silicone rubber heater, drum heaters

5, Alloy materials:
A,Nichrome, NiCr8020, NiCr6015, NiCr7030, NiCr3520, NiCr3020, NiCr2025, etc.
NiCr 80 Also called: Chromel A, Nikrothal 80, N8, Nichrome V, Tophet A, Resistohm 80, Cronix 80, Alloy A, MWS-650, Stablohm 650
NiCr 60 Also called: Chromel C, Nikrothal 60, N6, Tophet C, Resistohm 60, Cronifer II, Nichrome Alloy C, MWS-675, Stablohm 675

B,Copper Nickel Alloys (CuNi Alloys):CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40, CuNi44 (constantan)

C.Pure nickel wire: N6, N8

D.PTC thermistor alloy wire: P-4500, P-4000, P-3800, P-3500, P-3000, P-2500

E.Stranded wire: nichrome alloy, nickel strand wire and other alloy material.

F.Thermocouple wire: Type K, N, E, J, T, S. Thermocouple cables

G.Thermocouple compensation alloy : KPX, KNX, EPX, ENX, TNX, NPX, NNX, JPX,JNX,etc
