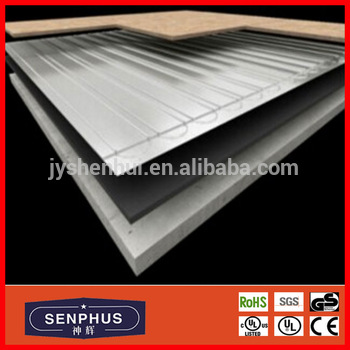

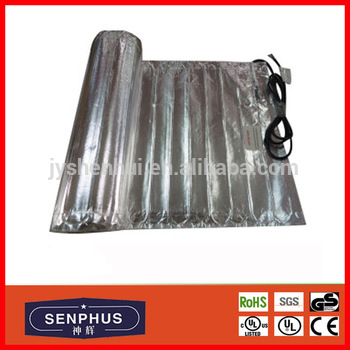

ultra thin 140W m2 twin conductor under composite floor aluminum foil heating mat

ultra thin 140W m2 twin conductor under composite floor aluminum foil heating mat

FOB Price:

US 8.5-150 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

15000 Piece/Pieces per Month

Port:

SHANGHAI FOR ultra thin 140W/m2 twin conductor under composite floor aluminum foil heating mat

Place of Origin:

Jiangsu, China (Mainland)

Payment Terms:

L/C,T/T,Western Union,MoneyGram

Brand:

Senphus

Products Model:

SHAFmat

Products Details
Company Profile

Quick Details

Brand Name: Senphus

Model Number: SHAFmat

Place of Origin: Jiangsu, China (Mainland)

Packaging & Delivery

Packaging Details: 1.Neutral box ( clean, no quirements) 2.Colorful box (with our logo and brand) 3.OEM (with customers' requirements)
Delivery Detail: 15 days normally change with the quantity

Specifications

ultra thin 140W/m2 twin conductor under composite floor aluminum foil heating mat

specifications

1.underdoor aluminium foil heating mat

2. 1mm thickness, 12-230V, powerline length from 1m to 4m

3.special suit for spa, bathroom etc wet room

Product Description

Description

Aluminum Foil underfloor heating mats are similiar with senphus underfloor heating mat but made of a heating cable encased in an aluminum foil.
The aluminum layer above the heating cable acts as a heat dispersion medium and earthing grid making the product also suitable for wet areas such as bathrooms and shower rooms where heating mat should not be used.

Data

230V	Heated Area		Mat Dimensions
Catalog Number	m2	sq.ft	M*m	in.*ft	(140w/m2)	Amps	ohms
SHAFMat/140-140-1.0	1.0	10.8	0.5*2	20*6.6	140	0.61	377.9
SHAFMat/140-210-1.5	1.5	16.1	0.5*3	20*9.9	210	0.91	251.9
SHAFMat/140-280-2.0	2.0	21.5	0.5*4	20*13.1	280	1.22	188.9
SHAFMat/140-350-2.5	2.5	26.9	0.5*5	20*16.4	350	1.52	151.1
SHAFMat/140-420-3.0	3.0	32.3	0.5*6	20*19.7	420	1.83	126.0
SHAFMat/140-490-3.5	3.5	37.7	0.5*7	20*23.0	490	2.13	108.0
SHAFMat/140-560-4.0	4.0	43.1	0.5*8	20*26.3	560	2043	94.5
SHAFMat/140-630-4.5	4.5	48.4	0.5*9	20*29.5	630	2.74	84.0
SHAFMat/140-700-5.0	5.0	53.8	0.5*10	20*32.8	700	3.04	75.6
SHAFMat/140-840-6.0	6.0	64.6	0.5*12	20*39.4	840	3.65	63.0
SHAFMat/140-980-7.0	7.0	75.3	0.5*14	20*45.9	980	4.26	54.0
SHAFMat/140-1120-8.0	8.0	86.1	0.5*16	20*52.5	1120	4.87	47.2
SHAFMat/140-1260-9.0	9.0	96.9	0.5*18	20*59.1	1260	5.48	42.0
SHAFMat/140-1400-10	10	107.6	0.5*20	20*65.6	1400	6.09	37.8
SHAFMat/140-1540-11	11	118.4	0.5*22	20*72.2	1540	6.70	34.4
SHAFMat/140-1680-12	12	129.2	0.5*24	20*78.8	1680	7.30	31.5

All Aluminium foil floor heating mats are covered by a 15-year warranty, energy efficient, and can be controlled using a variety of programmable and non-programmable thermostat options.

(Resistance test and Insulation test in the picture before packing&shipping)

Packaging & Shipping

Certifications

FAQ

Q: Are you a manufacture or a trading company?
A: Senphus is a professional manufacture for 20 years.
Q: Can you offer the samples?
A: Yes, the sample is free, but you should pay for the feight expense.
Q: What is the MOQ?
A: If standard models, MOQ=1PC.
Q: What's the delivery time?
A: Generally after reveiving the depost for 7days. depends on the quantity.
Q: How about the quality of your products?
A: We insist on applying for different certifications so that customers can trust our quality
To date, we have GS, CE, VDE, IP68, UL, cUL, ISO etc.

Welcome to consult

Jiangyin Senphus Electrical Material Co.,Ltd is the only one floor heating cable in China which has his own alloy resistance material company.

Our main products:

1, underfloor heating system: floor heating cable, floor heating mats

2, anti-freeze heating cables: water pipe heating cable, roof& gutter de-icing cable

3, Heating wires: PVC heating wire, Silicone rubber heating wire, FEP heating wire, electric blanket heating wire, car seat heating wires, etc.

4, silicone rubber heater: UL silicone rubber heater, drum heaters

5, Alloy materials:
A,Nichrome, NiCr8020, NiCr6015, NiCr7030, NiCr3520, NiCr3020, NiCr2025, etc.
NiCr 80 Also called: Chromel A, Nikrothal 80, N8, Nichrome V, Tophet A, Resistohm 80, Cronix 80, Alloy A, MWS-650, Stablohm 650
NiCr 60 Also called: Chromel C, Nikrothal 60, N6, Tophet C, Resistohm 60, Cronifer II, Nichrome Alloy C, MWS-675, Stablohm 675

B,Copper Nickel Alloys (CuNi Alloys):CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuNi30, CuNi34, CuNi40, CuNi44 (constantan)

C.Pure nickel wire: N6, N8

D.PTC thermistor alloy wire: P-4500, P-4000, P-3800, P-3500, P-3000, P-2500

E.Stranded wire: nichrome alloy, nickel strand wire and other alloy material.

F.Thermocouple wire: Type K, N, E, J, T, S. Thermocouple cables

G.Thermocouple compensation alloy : KPX, KNX, EPX, ENX, TNX, NPX, NNX, JPX,JNX,etc
