FPJ series photo sensors switches, small rectangle, finger tip size,small infrared sensors
FOB Price:
US 12-18 / Piece
Min.Order Quantity:
10 Piece/Pieces
Supply Ability:
20000 Box/Boxes per Month
Port:
Guangzhou, Shenzhen
Place of Origin:
Hunan, China (Mainland)
Payment Terms:
T/T,Western Union
Brand:
F&C
Products Model:
FPJ series
Share:
- Products Details
Quick Details
-
Brand Name: F&C
Model Number: FPJ series
Place of Origin: Hunan, China (Mainland)
Packaging & Delivery

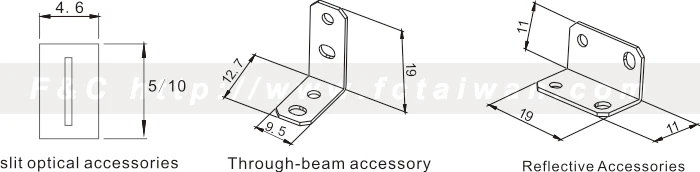

- Packaging Details: carton box, 1* sensors with 2m cable, screw/braket
- Delivery Detail: 15 working days
Specifications
PS. These sensors can be connector type which with 150mm cable, cable type with 2m cable.
Product Description
|
Model
|
FPJ-T21 FPJ-T21/15D FPJ-T22 FPJ-T22/15D |
FPJ-D21 / FPJ-D21/15D FPJ-D22 / FPJ-D22/15D |
|
Scanning distance
|
1500mm | 100±10mm |
|
Emitting light
|
RedLED:630nm | |
|
Operating voltage
|
DC:10~30VDC±10%(Ripple P-P:10%Max) | |
|
Current consumption
|
15mA Max | |
|
Load current
|
100mA Max at DC 24V | |
|
Output type
|
N=NPN.NO/N2=NPN.NC P=PNP.NPN/P2=PNP.NC | |
|
Protection circuit
|
Reversed supply ciruit protection,short citcuit protection output |
|
|
Response time
|
0.3 ms Max | |
|
Insulation resistance
|
20M Ωmin.(DC500V) | |
|
Voltage withstandatility
|
AC1000V 60Hz for 60 Sec | |
|
Operating temperature
|
-10°C~+45°C(No freezing allowed ) | |
|
Ambient hunidity
|
35%~95%RH | |
|
Storage temperarure
|
-10°C~+55°C(No freezing allowed ) | |
|
Storage hunidity
|
35%~95%RH | |
|
Material
|
ABS | |
|
Wiring method
|
φ4×2M/3-wires, φ4×2M/2-wires | |
|
Protection degree
|
IP40 | |
|
Weight
|
Approx.18.5g | |

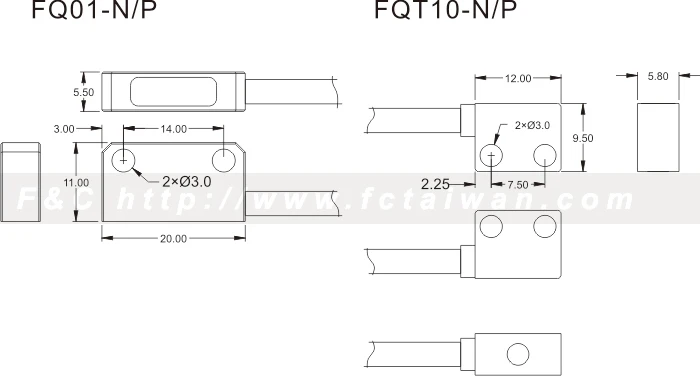

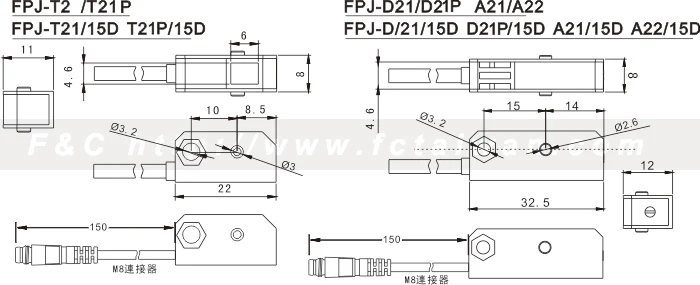

Diagram
