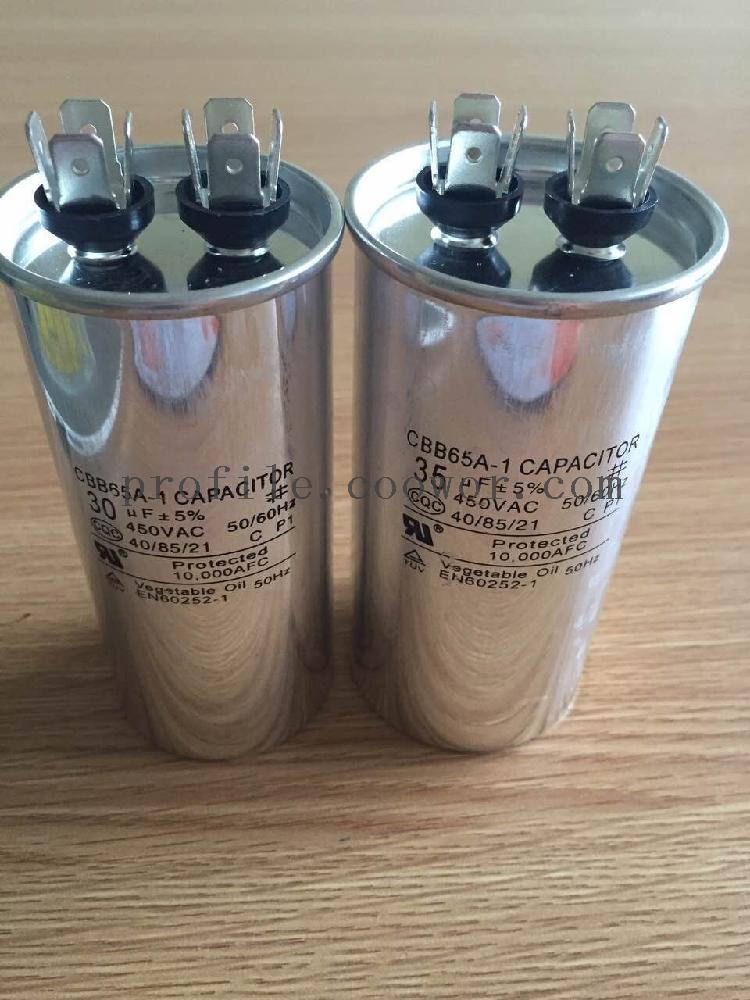

Trump CBB65-1 metalized polypropylene AC capacitor

FOB Price:

USD 0.1-0.3 / Perch

Min.Order Quantity:

500 Piece

Supply Ability:

1000000 Piece per Month

Port:

NINGBO SHANGHAI

Place of Origin:

Anhui,China

Payment Terms:

L/C, T/T

Brand:

Products Model:

CBB65

Products Details
Company Profile

Quick Details

Brand Name: TP

Model Number: CBB65

Place of Origin: Anhui,China

Packaging & Delivery

Packaging Details: CARTON
Delivery Detail: WITH 20 DAYS

Specifications

Product detail:

Features:

Round-shape metal case,Two groups of lug terminals.
With inner anti-explosion device,safe and reliable.
Low dissipation factor,high insulation resistance,good seif-healing,stable performance,

Good ability of resisting impact current and overload.

Technical Data:

Ambient temperature	-40~+85 degree Ceisius
Rated Voltage	250-500VAC
Capacitance Range	2-100uF
Test Voltage	T-T:1.75Un/2s T-C:2200VAC/2s
Capacitance Tolerance	+5%, +10%
Dissipation Factor	tg</=0.002(100Hz,20 degree Ceisius)
Operating Frequency	50/60HZ
Executing Standard	IEC60652,UL810,EN60252,VDE0560-8,GB/T3667.1-2005

Outline Dimensions:

Capacitance Range	250-300VAC		370-400VAC		440-450VAC
Capacitance Range	D(mm)	H（mm）	D(mm)	H(mm)	D(mm)	H(mm)
1-100uF	30-50	55-125	30-60	55-125	30-60	55-135

Xiamen Trump Refrigeration Parts Co., Ltd. (TPRP), located in Xiamen, China, specializes in various refrigeration products(airconditioning, icebox and icecabinet parts, thermostats, filter driers, condensers and evaporators, gauge valves, expansion valves, tools, copper tubes and fittings, welding materials, electric motors, compressors, vacuum pumps, capacitors, etc.)
Owing to advanced manufacturing equipment, sophisticated technician crew and perfect testing equipment and methods, we have our products qualified and believable. Our products have been exported worldwide, such as America, Europe, the Middle East, Southeast Asia etc, and achieved good reputation.
Quality is the foundation for survival and development of TPRP. “everything being done from the perspective of the customers” is the firm service norm of TPRP.
