Remote control sensors with capillary tube

FOB Price:

US 4.21 / Piece

Min.Order Quantity:

100 Pieces

Port:

Place of Origin:

Payment Terms:

Brand:

Products Model:

Products Details
Company Profile

Quick Details

Specifications

Product Description

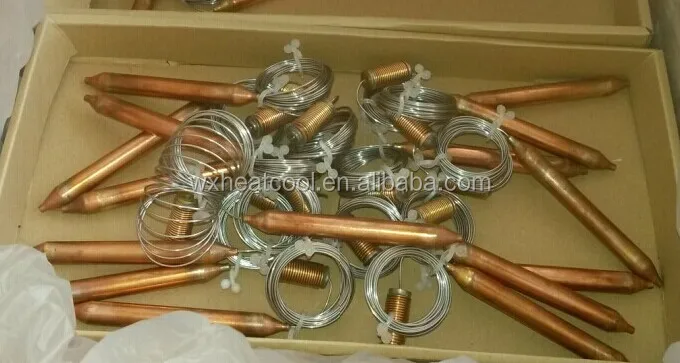

This element DL-6 capillary sensor is used in mixing systems for floor distribution. It is introduced in a pocket

directly in contact with fluid .

Technical Datas

Model	DL-6
Temperature range	20......70 C
Extension	0.105 mm/K ± 5%
Reference size "X"	29.2 ± 0.5 mm
Capillary length	2000 mm or customized

Under pressure 6KG , 20 degree C , "X " =29.2±0.3 mm .

Under pressure 6KG , 20-70 degree C , stroke =5.25±0.25 mm .

Under pressure 12KG , bellows and bulb both can not have deformation .

Detailed Images

Drawings :

Established in 1988, the total area of our company is 8400 square meters, and 35% of our employees are technicians. We have standard workshop and advanced production and testing equipment.

We are a professional producer for different kinds of thermostats. In the past few years, we have developed many new products, such as thermostat valves, temperature pressure safety valves, boiler thermostats, pressure switches and flow switches.

We are ISO9001 approved and our products have got EN215, UL, CE, RoHS, REACH and ISO9001:2008 approvals. Our thermostatic valve has passed the EN215 preliminary test and now we are applying for official approval.
