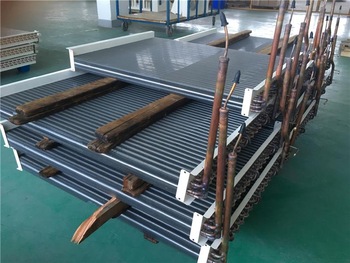

copper fin waste water evaporator for ahu custom made refrigerator evaporator fan motor

Application

• Oil coolers for hydraulic systems
• Water and liquid coolers for industry and power plants
• Steam
• Unit heaters
• Fan coils
• Convectors
• Air handling units
• Ducted systems
• Cold beams
• Glycol heat recuperation circuits
• Heat pumps
• Air conditioning
• Dehumidifiers
• Close control AC
• Rooftops
• Air-handling units
• Air curtains and transportation AC
• Bottle coolers
• Chillers
• Remote condensers
• Condensing units
• Showcases
• Display cases
• Milk tanks
• Transportation AC and refrigeration

Offered Solution

• Straight or formed, L or U or O-shaped coils
• Smooth inner grooved tube or super-grooved tube with different diameters and thickness of wall
• Different approach of plain, corrugated or louvered fin profiles
• LCE Coating anti corrosion and antimicrobial protection
• High-quality powder paint
• Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
• Maximum of 10 mm fin spacing
• Defrosting slots are available in certain cases
• Coating anti corrosion and antimicrobial protection
• Pre-coated epoxy (gold) or blue (hydrophilic) fin material is available
• Circuiting for horizontal, vertical or combined use
• Circuiting with tripods and with sub-cooling sections available

Technical specification

TUBES

• Copper, Stainless steel, Aluminium, Hot dipping carbon steel, Titanium
• 5mm, 7 mm, 5/16", 3/8", 12 mm, usa market exchanger, 5/8"
• Smooth, Smooth thick-walled, Grooved, Supergrooved (deeper grooves)
• Connection to several circuits available

FINS

• Aluminium
• Hydrophilic
• Epoxy coated
• Copper
• Stainless steel
• Hot dipping carbon steel
• Titanium

CASING MATERIAL

• Thick. 1 – 3 mm
• Galvanized steel
• Aluminium
• Stainless steel
• Copper
• Brass

CASING STYLE

• End plates with or without collets
• Various design of side plates
• Fan plates (Galvanized steel and Aluminium up to 1,5 mm) with pressed collar for fan (16 possible diameters)
• Diffusers for involvement in pipeline

Lead Time: 20 - 40 days
Payment Terms: 30% T/T payment in advance, 70% T/T payment before delivery
Packing Condition: Standard export packing or customized packaging
