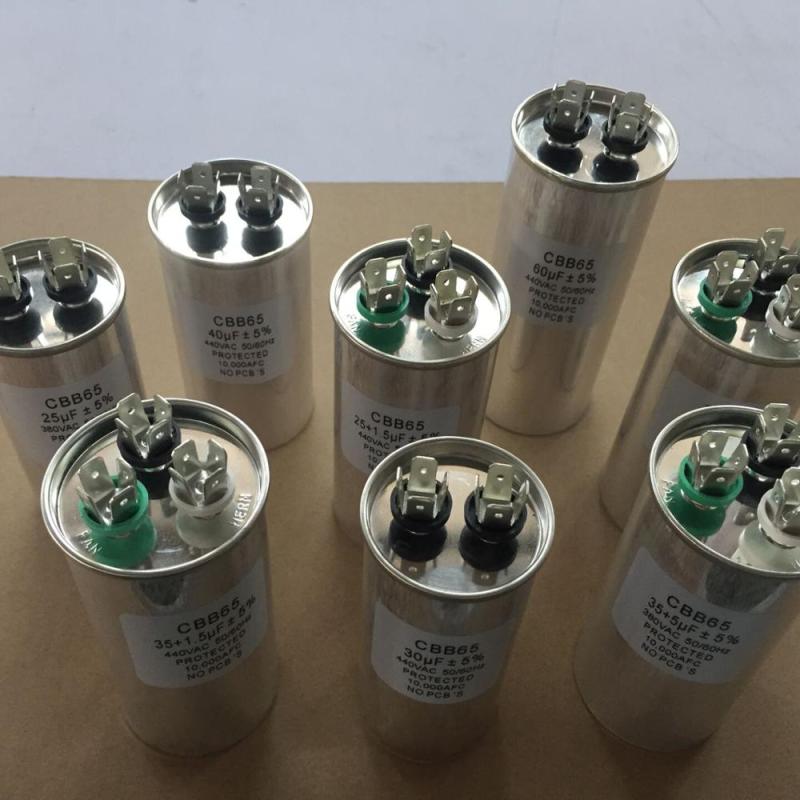

OEM or RETEKOOL air conditioning run capacitor 450V 35UF CBB65

Metal case,plastic insulation. insulation oil impregnation, with inner pressure protection device, safe and reliable; small volume,light weight,high insulation resistance,high withstand voltage,low dissipationfactor, good self-healing, stable performance and etc.

Specifications

CBB65 air conditioner compressor run capacitor
Used widely in motors,air conditioner ,water pump
sample available

Applications:

Run starting in household electric appliances air conditioner,

refrigerator which demand 50/60Hz AC power supply Have

safe protection constrution.

General specificaiton for capacitor:

1. General description:
Broadly applied to running of single-phase AC motors at 50Hz(60Hz)frequency for washedrs and high efficiency compressors of refrigerators etc.

2.Features:

The capacitor takes heavy-edge metallized, AI/Zn pp film or web-like fuse metallized pp film as dieledtrie, its components are assembled in flame-retardant ABS or PBT ey lindrical crust, impregnated with flame-retatdant epoxy resin,It has high reliability and stability.

3.Technical parameter

Standard:GB3667-1997,same as IEC60252:193

Climate type:40/70/21, 40/85/21

Capacitance tolerance: ±5%

Dielectric dissipation factor: tg&≤0.002(50Hz~100Hz)

Life expectancy:3000h(ClassC)or10000h(ClassB)

4.Service condition

Altitude:≤2000m

Residual voltage in application:Less than 10% of rated voltage
Allowed maximum voltage: Less than 1.1 times of rated voltage
Permissible maximum current: Less than 1.3 times of rated current

Packaging: Exporting Standard Brown Carton Packing.

                   50pcs or 100pcs/inner box, 2 boxes or 4 boxes/carton.

                   Offer bulk packing, Individual box packing, use pallet. Or as your request.

Delivery Detail: 15 to 25 days, depends on your quantity

  1, Fast delivery;

  2, 7days each week service, you can find us at any time and any where;

  3, Free Sample, you can check our quality before you place order;

  4, CBB65 CBB60 CBB61 CBB80 CD60B Capacitor Approved by CE,CQC, UL

  5, More than 10 years' professional experience about CBB60, CBB61, CBB65, CD60  and CBB80 AC Motor Run Capacitor

1. Q: I haven't done business with you guys before,how can I trust your company?

    A: Our company has been in Alibaba.com for 15 years, which is longer than most of our fellow suppliers, we've been golden suppliers for years. What's more, we've got quite a lot authority certificates, for example, CE, ISO9001, Alibaba onsite check certificate. I hope those above will be persuasive enough.

2. Q: What is the minimum order?

     A: Yes, our company mainly deals with wholesale deals, but if you insist buying one piece, or you just need one piece, we would be very likely to make the MOQ as 1 piece for you though.

3. Q: How can I get a sample to check your quality? How long can I get the sample?

    A: After price confirmed, FREE SAMPLE could be provided for your evaluation.After you confirm the sample details, the samples will be ready for delivery in 3-7days,and will be sent to you via express and arrive in 3-5days.

4. Q: What payment methods your company accept?

     A: We accept T/T, L/C, Western Union, Paypal.

 5. Q: What's the shipment terms and delivery time of your company?

     A: FOB,CFR,CIF,15-50days

 6. Q: Do you give any discount ?

      A: We'll surely try our best to help you get those by the best price and good service at the same time.
