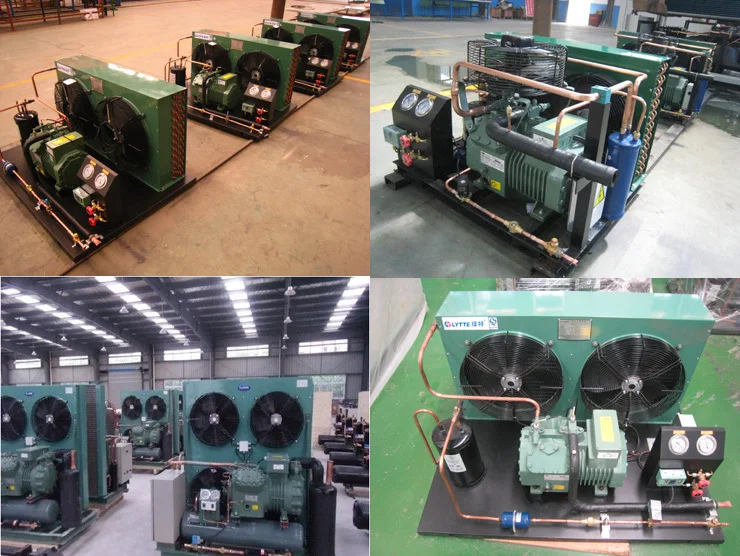

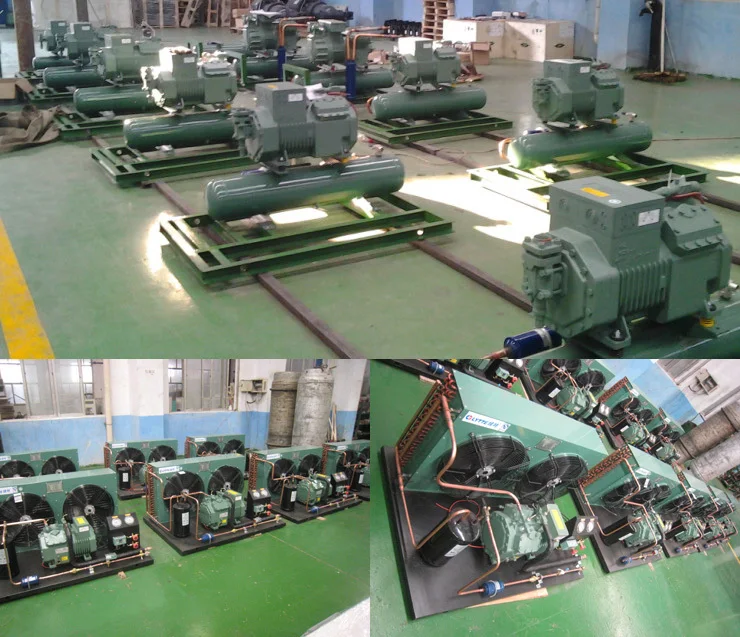

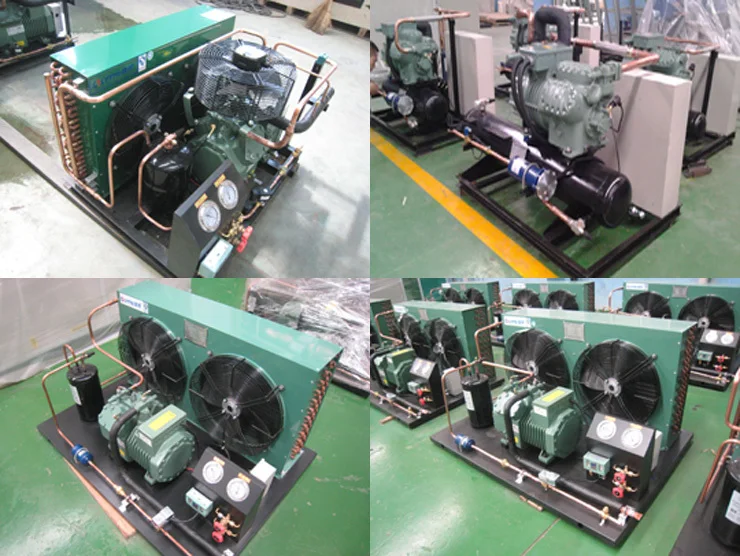

Refrigeration Condensing Unit for Cold Storage, Freezer (JZBF Series Condensing Unit with Bitzer Semi-hermetic Compressor)

Refrigeration Condensing Unit for Cold Storage, Freezer (JZBF Series Condensing Unit with Bitzer Semi-hermetic Compressor)

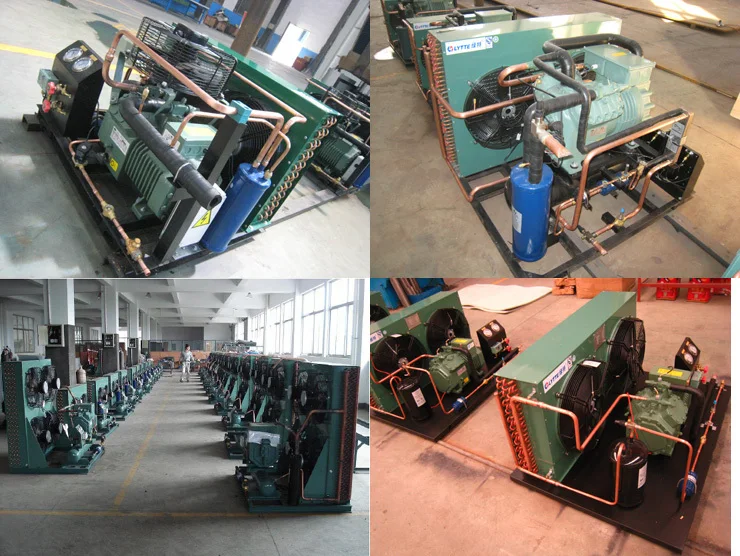

The JZBF series condensing unit features by their Semi-hermetic Bitzer compressor, it includes air cooled units and water cooled units with R22 or R404a refrigerant which applied for middle and high, middle and low temperature range. All the products are applicable to the industries of different temperature requests' cold rooms, food fresh preservation keeping, freezing cold storage, ice making, chilled water and other refrigeration equipments etc.

Condensing Unit Main Features:

World famous brand Refrigeration parts are utilized for all models; good quality&reliability; Semi-hermetic Piston Bitzer Compressor; quality ensured;

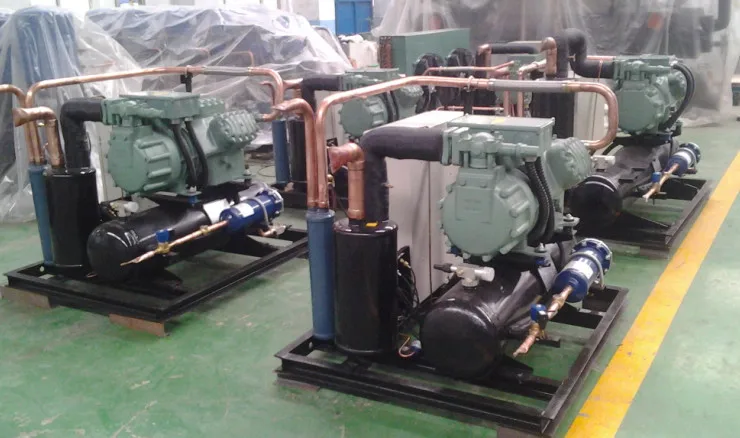

Copper tube&aluminum fin type heat exchangers for Air Cooled Condensers and high-efficiency shell and tube heat exchanger for Water Cooled Condensers; High efficient heat exchange and long life for usage;

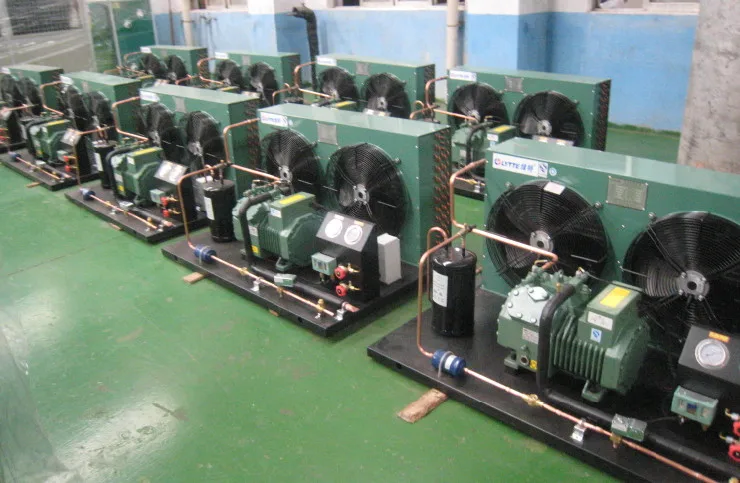

External rotor fan with low noise, high efficiency, good outlook;

Equipped with a waterproof terminal junction box. All control components are access to the junction box, convenient for users to connect wiring; ice making, chilled water and other refrigeration equipments etc.

Built in water proof terminal box.

Supplier Assessment Report

Main Product Lines Verification Report(s)

JZBF AIR COOLED CONDENSING UNITS CATALOGUES:

a) R22 Refrigerant Units

1) Middle&High Temperature: JZBF02M---JZBF50M (2HP-50HP)

2) Middle&Low Temperature: JZBF01L---JZBF40L (1HP-40HP)

b) R404a Refrigerant Units

3) Middle&High Temperature: JZBF02MY---JZBF50MY (2HP-50HP)

4) Middle&Low Temperature: JZBF01LY---JZBF40LY (1HP-40HP)

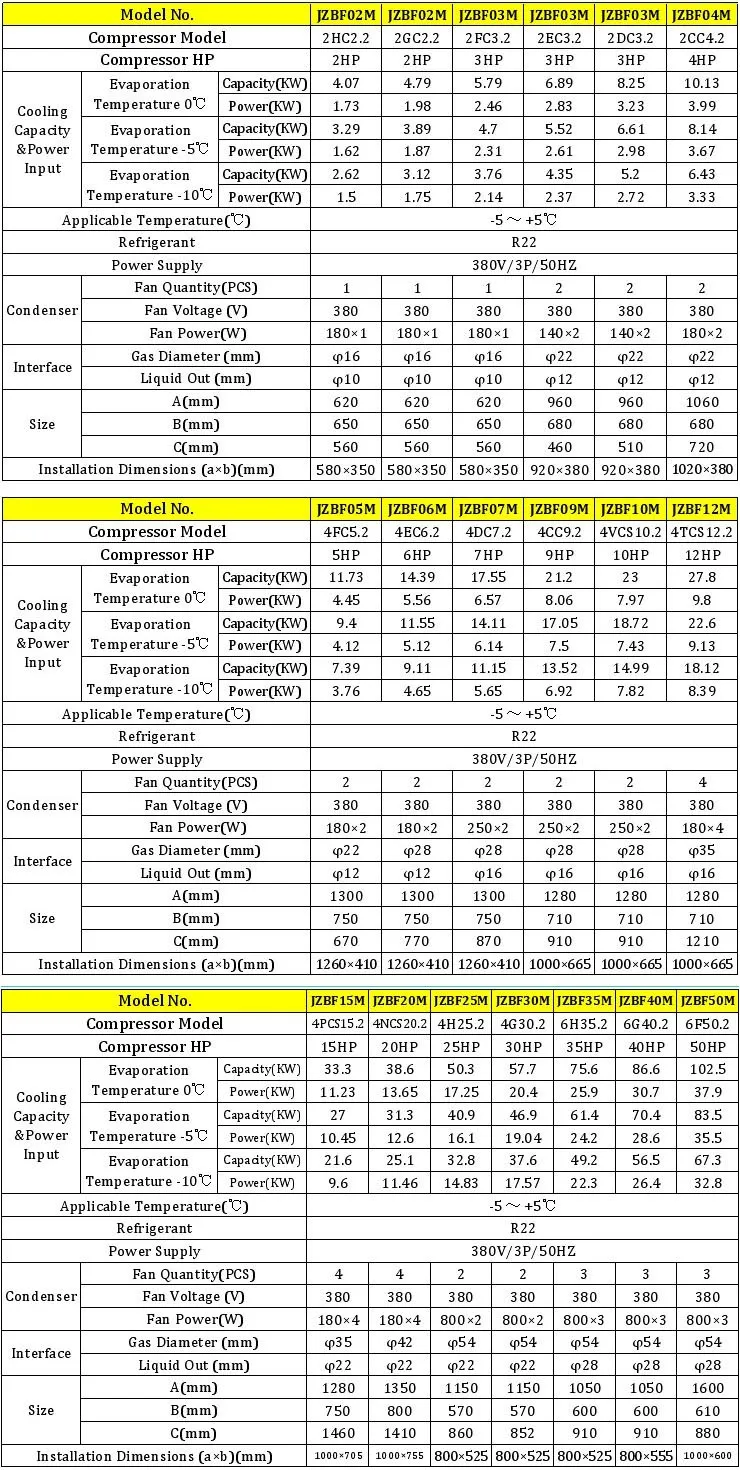

1) Air Cooled 2HP-50HP Condensing Unit R22 Middle and High Temperature Units

Notes: 1) Cooling Capacity at Condensing Temperature 50℃;

2) Compressors above 25HP, the units are without condensers, V-type condensers provided separately.

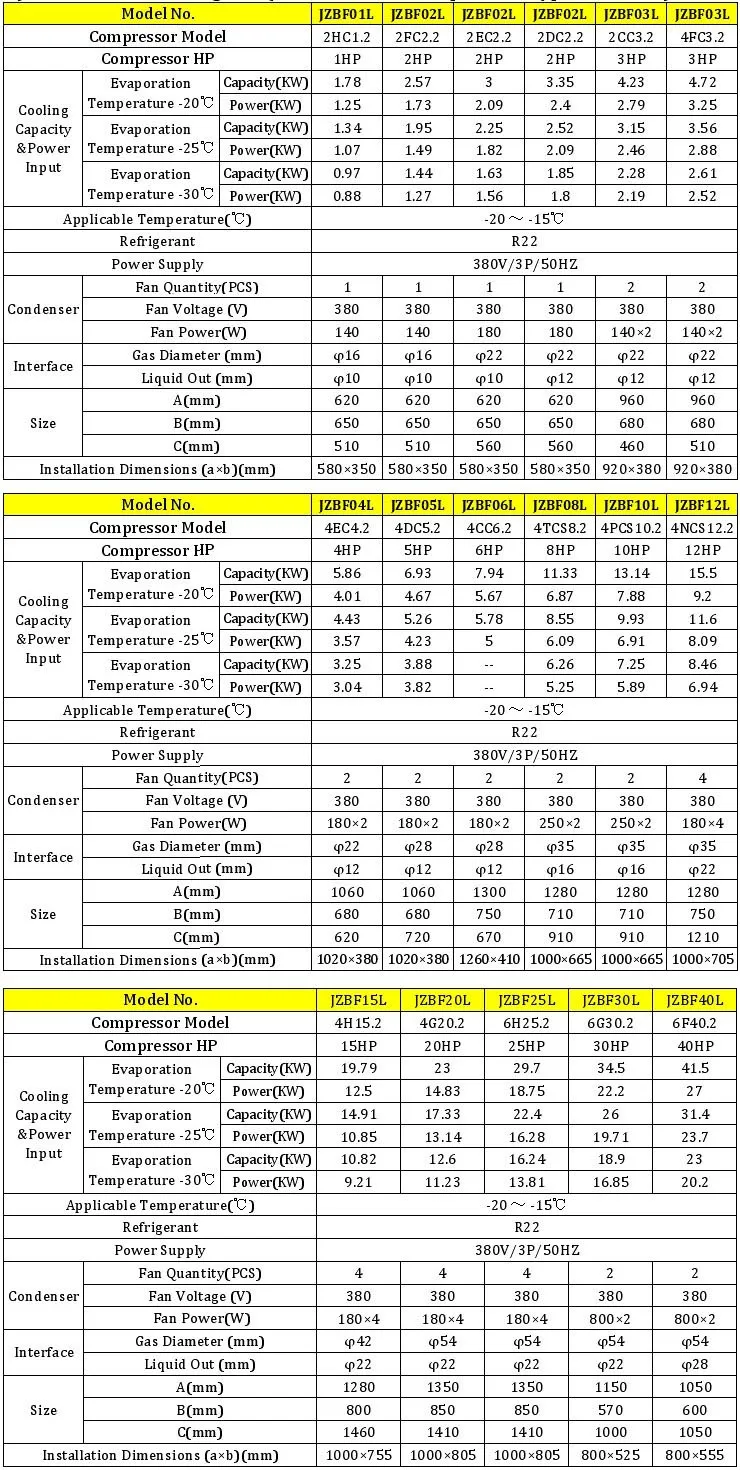

2) Air Cooled 1HP-40HP R22 Condensing Unit Middle and Low Temperature Units:

Notes: 1) Cooling Capacity at Condensing Temperature 50℃;

2) Compressors above 30HP, the units are without condensers, V-type condensers provided separately;

3) Compressor Over 8HP, when using evaporating temperature is below -23℃, CIC system is needed.

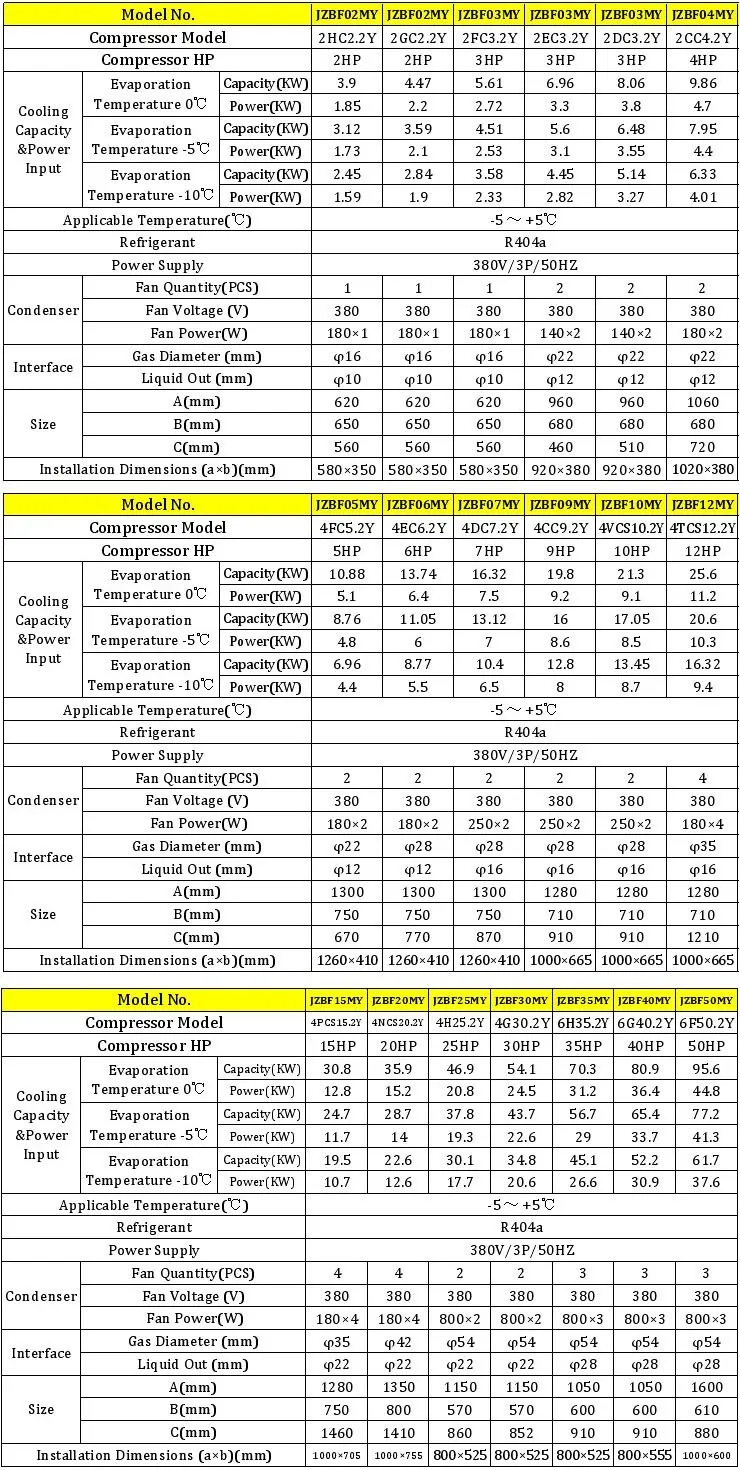

3) Air Cooled 2HP-50HP Condensing Unit R404a Middle and High Temperature Units

Notes: 1) Cooling Capacity at Condensing Temperature 50℃;

2) Compressors above 25HP, the units are without condensers, V-type condensers provided separately.

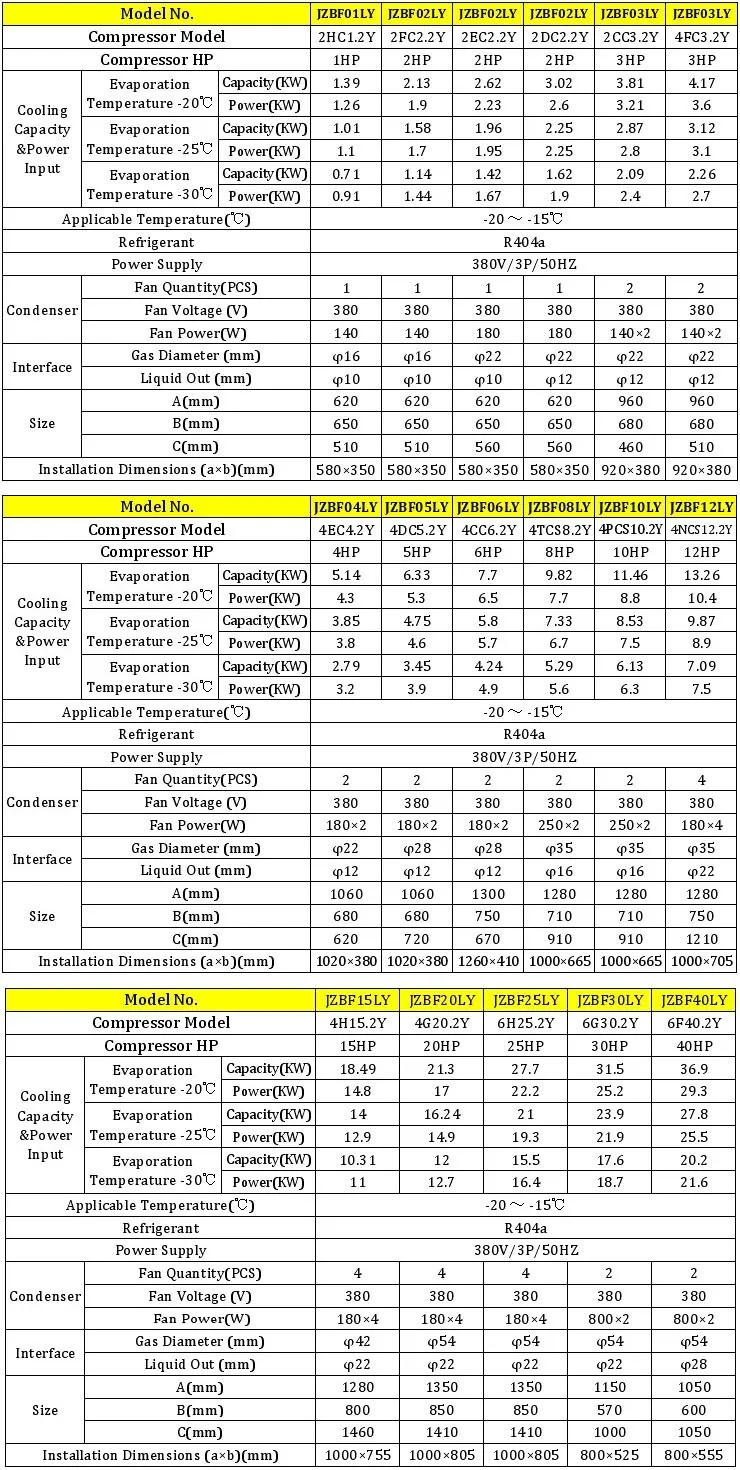

4) Air Cooled 1HP-40HP Condensing Unit R404a Middle and Low Temperature Units:

Notes: 1) Cooling Capacity at Condensing Temperature 50℃;

2) Compressors above 30HP, the units are without condensers, V-type condensers provided separately;

3) Compressor Over 8HP, when using evaporating temperature is below -23℃, CIC system is needed.

Condensing Unit Main Parts Instructions

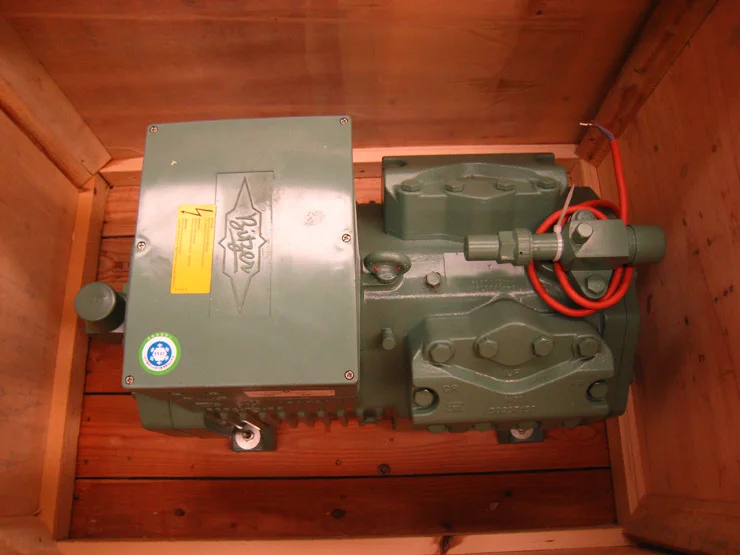

Compressor

Oil Heater

Vibration Absorber

Oil Separator

Condenser

Liquid Receiver

Filter

Sight Glasses

Solenoid Valve

Pressure Gage

Pressure Controller

Oil Pressure Protector

Suction Accumulator

Suction Filter

Cooling Fan

Junction Box
