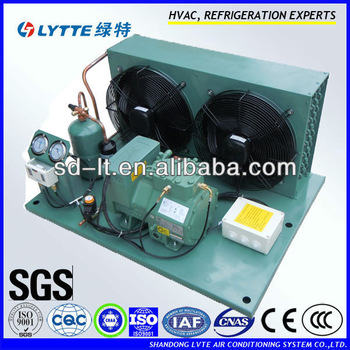

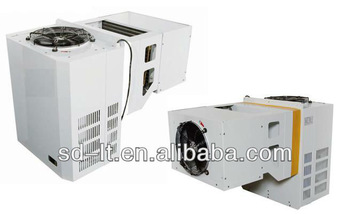

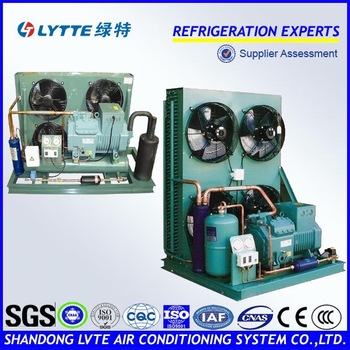

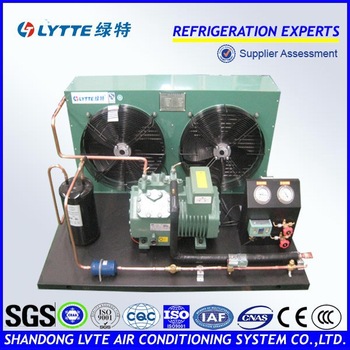

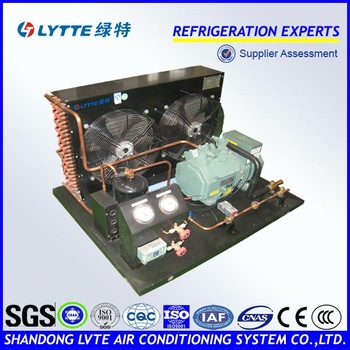

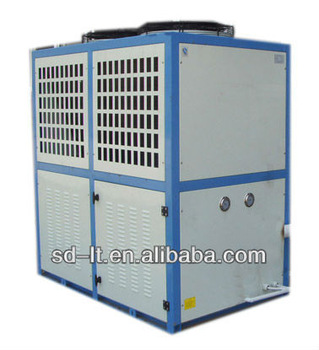

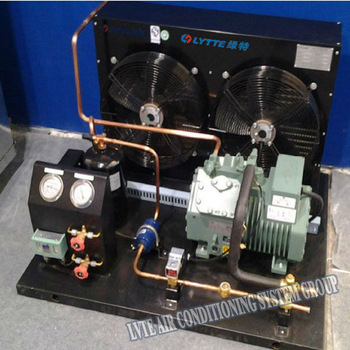

Box Type Tecumseh, Maneurop, Copeland Hermetic Compressor Condensing Unit For Food, Vegetable, Fruit Cold Room Storage

Box Type Tecumseh, Maneurop, Copeland Hermetic Compressor Condensing Unit For Food, Vegetable, Fruit Cold Room Storage

Introduction:
Feature box type structure with hermetic compressor; Applicable temperature ranges are: -5°C~ -10°C and -10°C~-18°C;
They used in hotels, restaurants, medicines, agriculture, chemicals industries all other place where cold storage is needed.
Features:
1.  Box type structure with hermetic compressor, that is compact and pleasant looking, applicable to cold display cases,
cold storage rooms, ice producers etc.
2.  Adopted Copeland Fuuly Hermetic scroll compressor; lowVibration&noise, good reliability;
3. Copper tube & aluminum fin type heat exchanger,high efficiency and long life;
4. Built-in junction box;

JZQ   03   M   A   G   Y

JZQ---LVTE Company Products Code

03 ---Compressor Power Input(HP)

M---Temperature: H: 5°C~8°C  M:-5°C~ 5°C

A---A:Air Side Outlet  B: Air Top Outlet

G---Compressor: G—Copeland3

Y---Refrigerant: Y—R404a; Others—R22

Air Top Oultlet Units Series(ZB Compressor)
1. Refrigerant: R22
1.1 Temperature:-5°C~ 5°C Models: JZQ02MBG---JZQ15MBG(2HP-15HP)
2.2 Temperature:-40°C~ -25°C Models: JZQ02JBG---JZQ05JBG(2HP-5HP)
2. Refrigerant: R404A
2.1 Temperature:-5°C~ 5°C Models: JZQ02MBGY---JZQ15MBGY(2HP-15HP)
2.2 Temperature:-18°C~ -15°C Models: JZQ03LBGY---JZQ15LBGY(3HP-15HP)
2.3 Temperature:-40°C~ -25°C Models: JZQ02JBGY---JZQ05JBGY(2HP-5HP)

Models Design:

Air Top Oultlet(Fan Top) Units Series(ZB Compressor)

1. Refrigerant: R22

1.1 Temperature:-5°C~ 5°C; 2-15HP    Models: JZQ02MBG---JZQ15MBG

2.2 Temperature:-40°C~ -25°C(ZF Compressor); 2-5HP   Models: JZQ02JBG---JZQ05JBG

2. Refrigerant: R404A

2.1 Temperature:-5°C~ 5°C;2-15HP        Models: JZQ02MBGY---JZQ15MBGY

2.2 Temperature:-18°C~ -15°C; 3-15HP     Models: JZQ03LBGY---JZQ15LBGY

2.3 Temperature:-40°C~ -25°C(ZF Compressor);2-5HP      Models: JZQ02JBGY---JZQ05JBGY

Technical Data for JZQ Series Copeland Air Cooled Condensing Unit

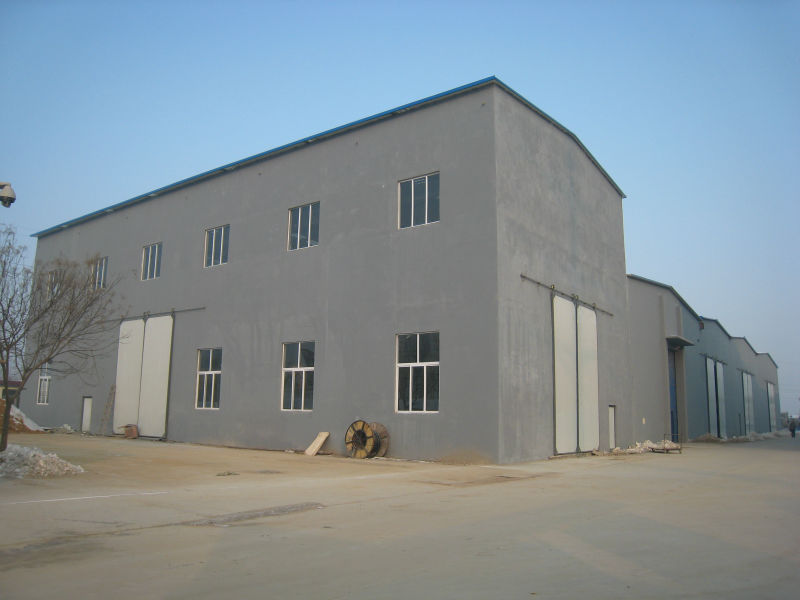

Company and Factory

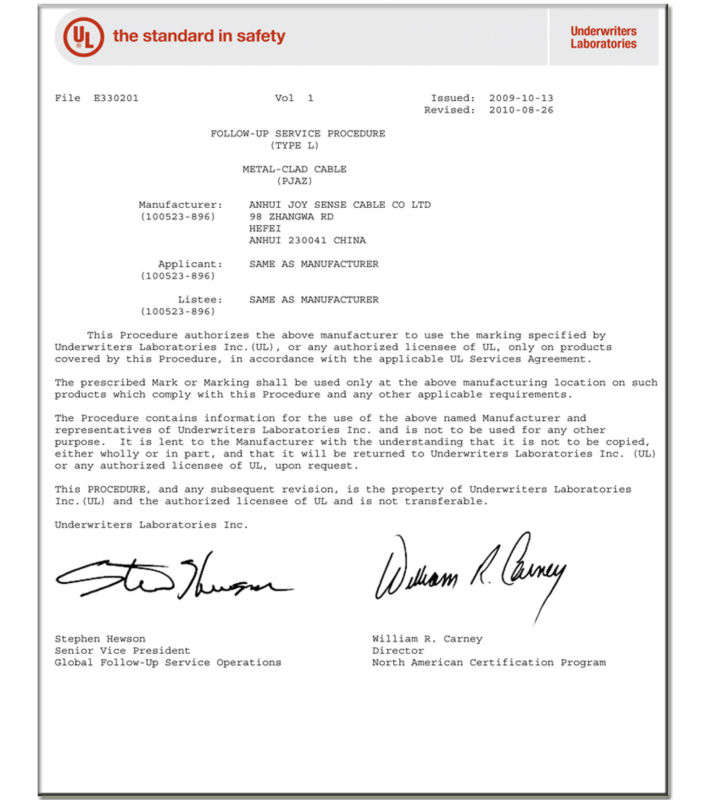

Company Certificates
