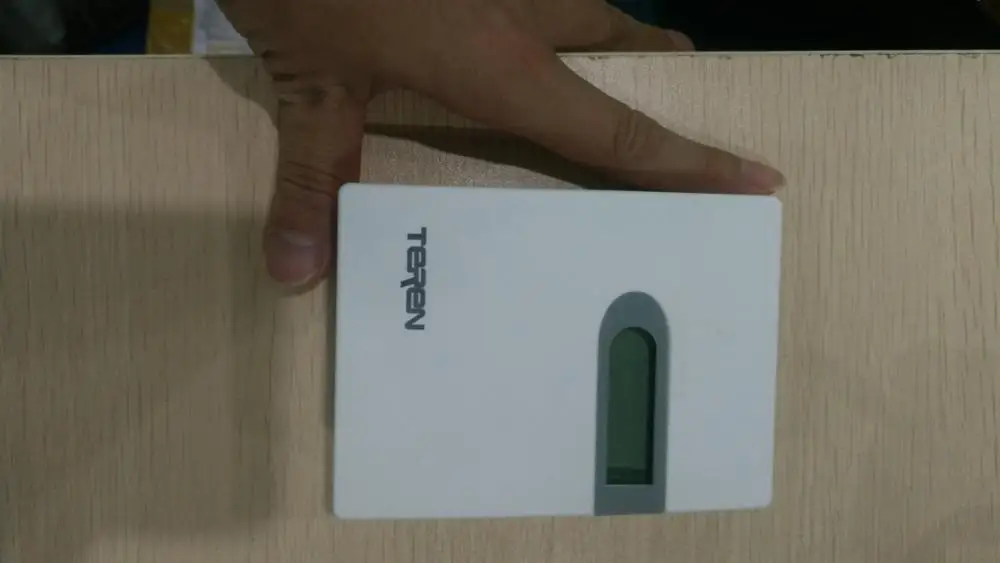

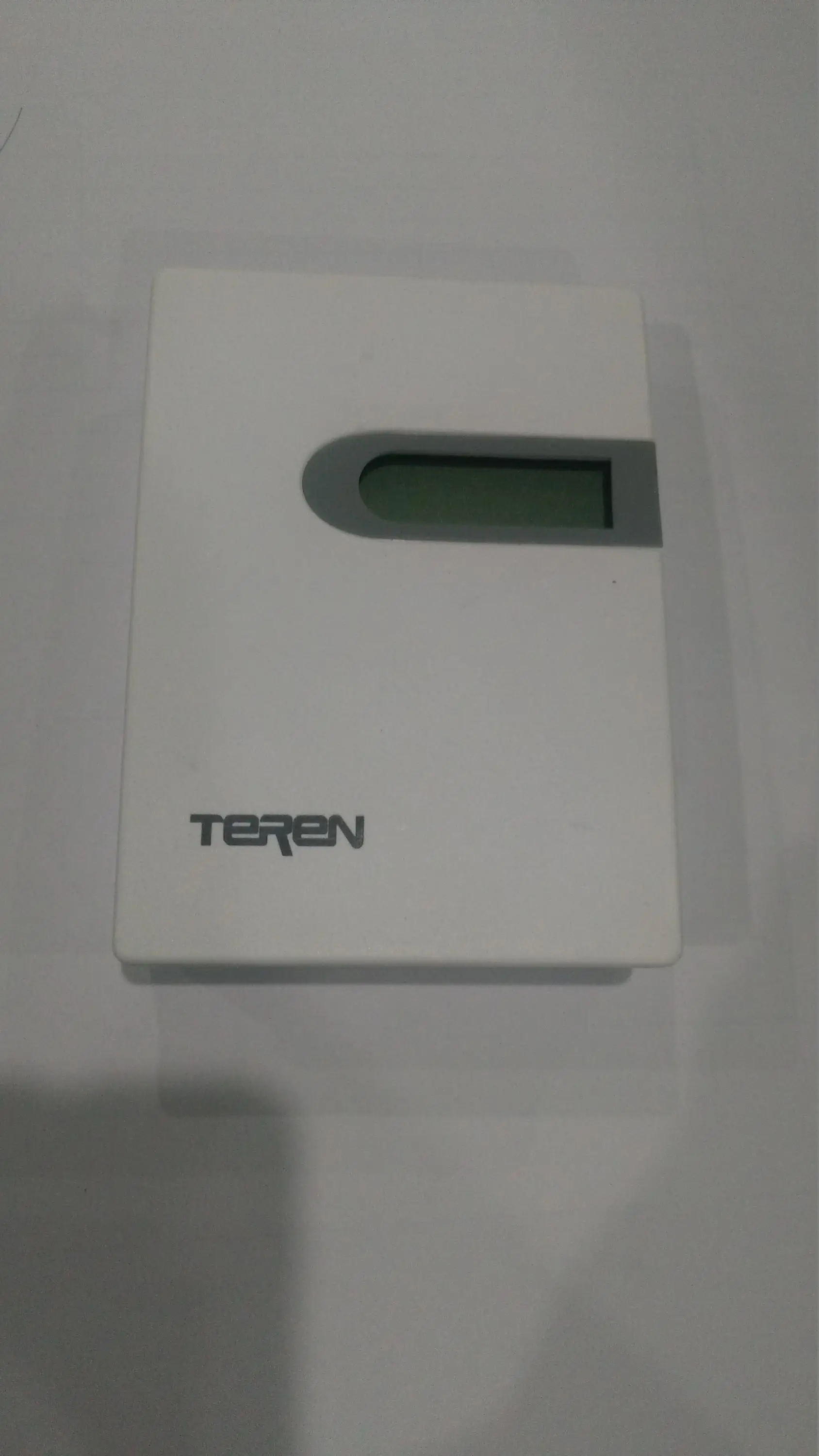

3in1 wall mount CO2/temperature /humidity/transmitter

l CDTH series carbon dioxide ( CO2 ) / temperature / humidity transmitters are designed for monitoring & controlling indoor air quality, temperature and humidity in one unit

l CDTHW is suitable for wall mount and CDTHD is suitable for duct mount

l High performance NDIR digital sensor and circuit, ensure precise measurement and temperature compensation

l Multiple optional RTD or thermistor sensors, compatible with a variety of control systems

l Stable, reliable and fast response

l 15 years of CO2 sensor life without maintenance

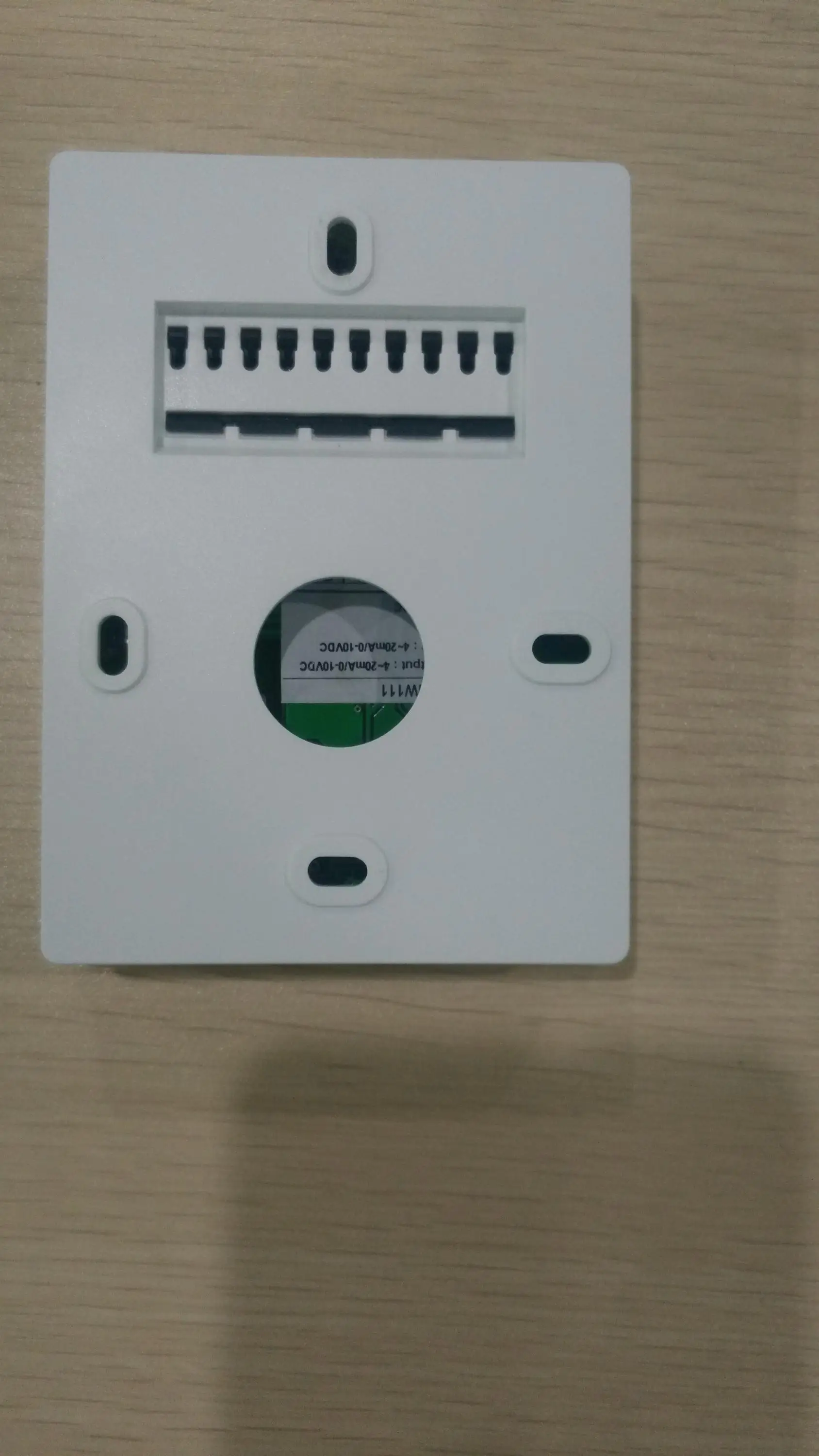

l All electrical terminals are on the inside bottom, avoid any possible destroy to PCB when wiring

l Digital technology applied, multiple outputs optional, over voltage and reverse polarity protection, high reliability and anti-interference capability

l Large LCD with unit indicator( CDTHW ), display carbon dioxide ( CO2 ), temperature and humidity alternatively

Specifications

Carbon dioxide (CO2 )

Sensor: NDIR sensor, with ABC algorithm*

Sampling Method: diffusion

Accuracy: (40+3%MV) ppm

Response time: <10s (30cc/min, low airflow)

Drift: <±10ppm/year

Range: 0~2000ppm (measure range 400~2000ppm)

Output: 4~20mA, 0~10V, RS485/Modbus

Temperature

Sensor: Digital, RTD or thermistor, see models

Range: 0~50°C

Accuracy: see accuracy table

Output: 4~20mA, 0~10V, RS485/Modbus or RTD / thermistor

Relative Humidity

Sensor: Digital polymer

Range: 0~100%RH

Accuracy: see accuracy table

Hysteresis: <±1%RH

Response time: <10s (25°C, in slow air)

Drift: <±0.5%RH/year

Output: 4~20mA, 0~10V, RS485/Modbus

Power supply: 16~28VAC/16~35VDC

Load resistance: ≤500Ω (Current output),≥2kΩ (Voltage output)

Display: Optional LCD Display (CDTHW)

Display resolution: 1ppm, 0.1°C, 0.1%RH

Working environment: 0~50°C, 0~95%RH (Non-cond.)

Temp. compensation: 0~50°C

Storage temperature: -20~60°C

Housing material: ABS+PC (CDTHW), fireproof ABS(CDTHD)

Protection: IP30 (CDTHW), IP65 (CDTHD)

Approval: CE

*ABC algorithm: Automatic Baseline Correction, it constantly keeps track of the sensor's lowest reading over a few days interval and slowly corrects for any long term drift detected as compared to the expected fresh air value of 400 ppm CO₂.

1. All products are factory set to 0-10V as output default, and can be set to 4-20mA by jumper on the PCB

*2. See resistance table on page 1 of this catalog.

Accuracy table for temperature/ humidity

*When select RTD/ thermistor, total error will be 0.5°C more than the accuracy in the models
