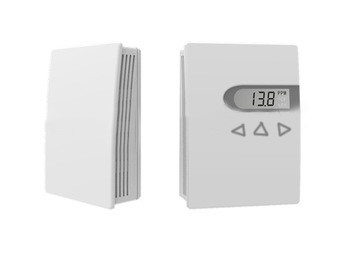

HVAC CMWN&CMD Carbon Monoxide transmitter/controller for car park and vehicle use

FOB Price:

US 99-283 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

500 Piece/Pieces per Month

Port:

shenzhen / Hongkong

Place of Origin:

Guangdong, China (Mainland)

Payment Terms:

L/C,T/T,Credit card

Brand:

TEREN

Products Model:

CDW CDD

Products Details
Company Profile

Quick Details

Brand Name: TEREN

Model Number: CDW CDD

Place of Origin: Guangdong, China (Mainland)

Packaging & Delivery

Packaging Details: Retail package
Delivery Detail: Shipped in 14 days after payment

Specifications

Product Description

CDD: Duct mount CO2 Transmitter/Controller

Applications & Features

CD series carbon dioxide transmitters/controllers are designed for monitoring & controlling car park and vehicle maintenance and test work shop according to manay building HVAC regulations.Considering of energy efficiency,demand controlled ventilation(DCV) is recommend to provide enough fresh air according to CO concentration and temperature .CM transmitter and controller are designed for these applications.it can effectively control the ventilation system to safety and energy -saving operations
enviromental friendly electrochemical sensor gives good long term accuracy ,sensitivity and reliability
better than most other similar sensors,it gives more than 7~10 years sensor life to protect customer's investment
better than most other similar sensor which may need recalibration every 6~12 months,it only need periodical recalibration as long as 3~5 years or more ,maintain 5% accuracy
all electrical terminals are on the inside bottom,avoid any possible destroy to PCB when wiring (for CMWN)
Digital techonology applied ,multiple outputs optional ,over voltage and reserve polarity protection,high reliability and anti-interence capability
wide rang of operating temperature ,optional relays to actuate the alarm of control function ouput
LCD&function keys can set various parameters,calibrate and adjust output ,so that the product can be a stand alone controller(for CMWN)

Specifications

Sensor: CO SENSOR ,electrochemical gas sensor

Range:0~100ppm,or others(0-400ppm)

Accuracy: ±5% @ 0-400ppm

Temperature sensor:Digital temperature sensor(CMWN)Thermistor(CMD)

Range:0-50℃

Accuracy:CMWN:±0.5℃ @ 0~50 ℃(≥1m/s air flow)

CMD:±0.5℃ @ 25℃(≥1m/s air flow)

Response time: <10s (30cc/min, low airflow)

Output: 4~20mA(3wires), 0~10VDC, RS485/Modbus;OUT1:T,OUT2:CO

Relay: 2*SPST, 1A/30VDC, 0.5A /125VAC (for CMD),

3A/30VDC, 3A/ 250VAC (for CMWN)

Alarm:buzzer+LCD"S backlight (CMWN)

Response time:≤60s

output load: ≤500Ω(current output), ≥2KΩ (Voltage output)

Power supply: 15~28VAC/16~35 VDC for CMWN

18~28VAC/18~35 VDC for CMD

Display & Keys: optional LCD Display & Keys (CMWN optional)see more details on LCD &keys operation

Working environment: 0~50°C(continuous);-5~55°C(intermittent), ~99%RH (Non-condensing)

Storage temperature: -20~80℃

Housing material: ABS+PC(CMWN),ABS(CMD)

Protection: IP30 (CMWN), IP65 (CMD)

Weight:150G

Approval: CE

Models

Model	CDW CDD					Wall mount CO transmitter/controller Duct mount CO transmitter/controller
Output		1 B				4~20mA / 0~10VDC 4~20mA / 0~10VDC , RS485/Modbus
Range			0 7			0~100ppm/0-50°C other (0~400ppm/0-50°C)
Relay Output				0 1 2		N/A 2SPST 1Buzzer(CMWN)
LCD & KEYS (CMWN)					0 1 2	N/A LCD LCD&KEYS

Packaging & Shipping

Sample Order	Order	OEM Order
Three work days	2 weeks	3 weeks

Port

Shenzhen, Hong Kong

Company Information

Why choose us ?

♦ Specilizng in manufacturing products of HVAC for almost 10 years.

♦ Harsh process of production and strict testing system.

♦ Material could be traced.

♦ High quality with competitive price.

♦ Delivery in time.

♦ Reply in 24 hours.

Certifications

FAQ

Q1: How to get the latest price?

Tell me the models, quantity, and other special requirement.

Q2: Payment terms?

100% T/T in advance.

Q3: Delivery time?

One week.

Q4: Shippment?

DHL, UPS, TNT etc.

Q5: Is OEM/ODM available?

Yes, it's available.

Q6: Warranty?

18 months.
