Brand Name: YONJOU
Model Number: QBY
Place of Origin: Zhejiang, China (Mainland)
Air Operated Slurry Pump 2"
Summarize
1. It's a new kind of transportation machine, adopting compress air, smoke and industry exhaust gas as power source.
2. No need of lead water, it can be used as self-sucking pump, dive pump, submersible pump, slurry pump, impurity pump etc.
3. It not only can exhaust the flow liquid, but also can convey some uneasy flowed medium.
4. Diaphragm materials: neoprene, fluoride rubber, Buna-N rubber and Teflon.
5. Casing materials: Cast Iron, SS304, SS316, Aluminum, PP, PP lining, PVDF, NBR lining
Main Usage
1. Peanut, pickles, tomato slurry, red sausage, chocolate, hops and syrup etc.
2. Paint, pigment, glue and adhesive etc.
3. Glazed slurries of tile, porcelain, brick and chinaware etc
4. Grinding materials, corrosive agent and clean the oil diry etc.
5. Toxin and flammable or volatility liquid etc.
6. Sedge water, cement slurry and mortar etc.
7. Strong acid, alkali and corrosive liquid etc.
8. It can be used as a front-step transmission device of the solid and liquid separation equipment.

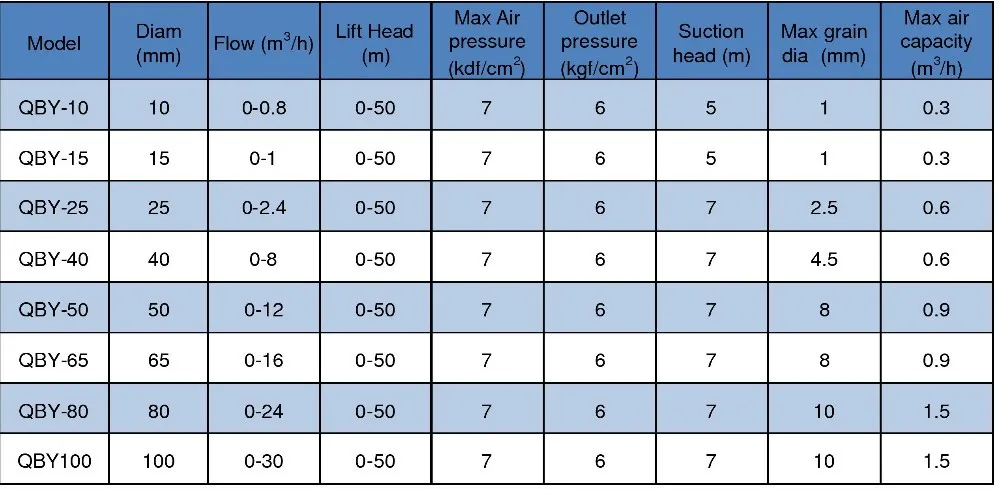

Data Table

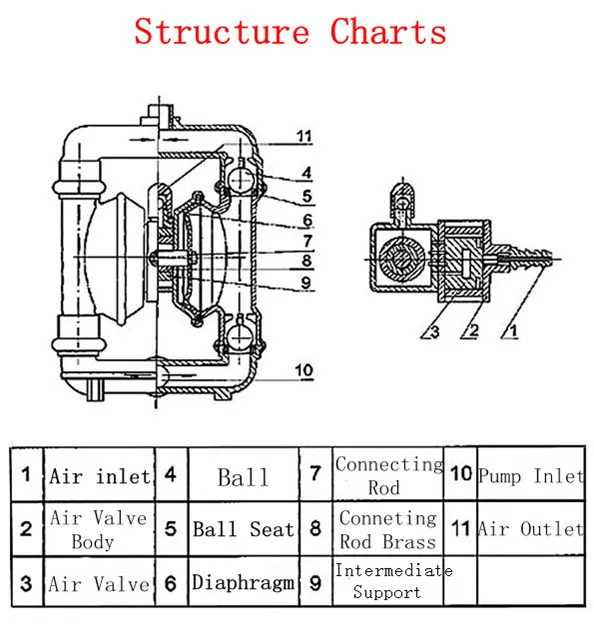

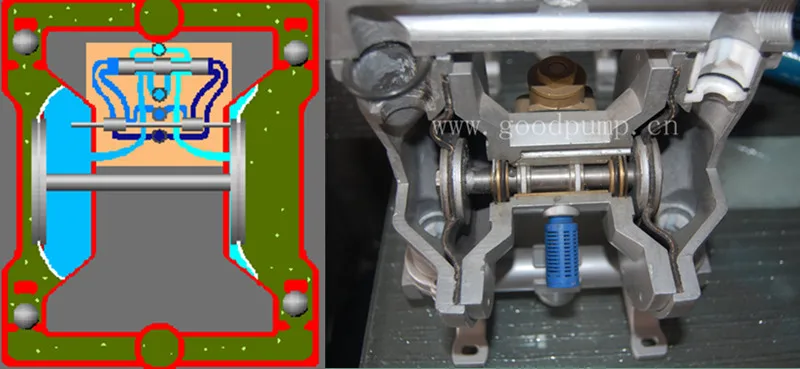

Operating Principle
Different Materials

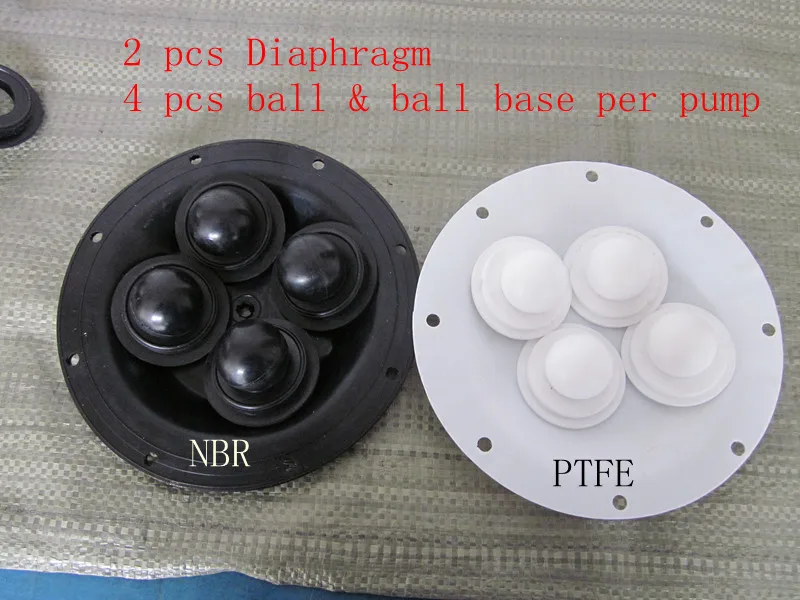

Wearing Parts
Mass Production

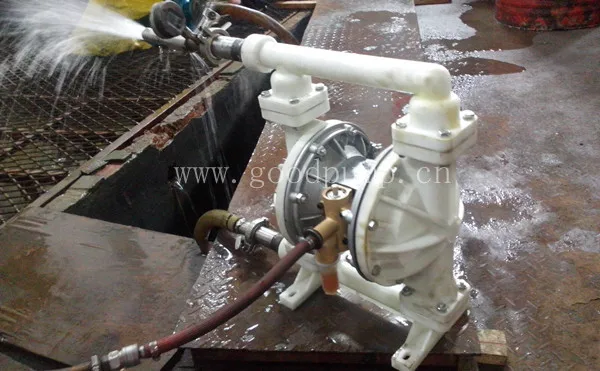

Testing(Each machine must be strictly tested before its delivery)
The goods are packed in new strong cases suitable for long distance ocean and air transportation.

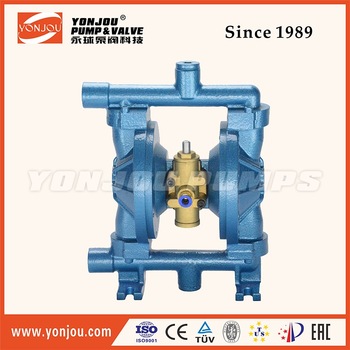

QBY10 ~ QBY40 (Small Size)

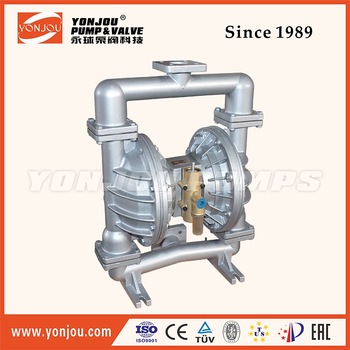

QBY50 ~ QBY100 (Big Size)
Office & Workshop
ISO9001:2008 & CE Certificate
The Advantage of our Pumps
Warranty Period
1. Please operate according to pump product description. If you have any questions of pumps,
kindly contact us, we will offer you the most professional and the best service.
2. We guarantee our products for a period of ONE YEAR from date of dispatch from our factory,
(The warranty doens't apply to wearing parts)
