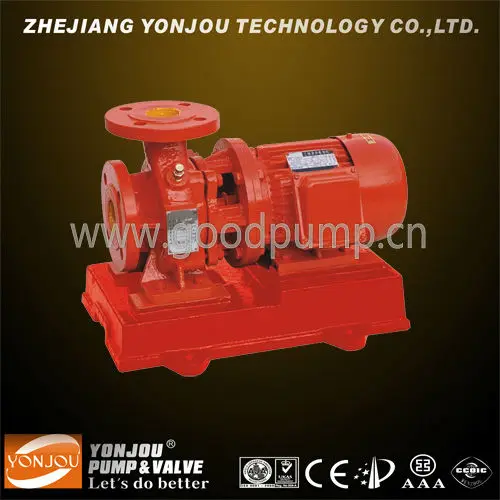

XBD Jockey Pump Fire Water Jockey Pump

FOB Price:

US 100-1000 / Piece

Min.Order Quantity:

1 Piece/Pieces

Supply Ability:

250 Piece/Pieces per Month

Port:

Ningbo/Shanghai/Shenzhen/Fujian/Qingdao

Place of Origin:

Zhejiang, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

YONJOU

Products Model:

XBD

Products Details
Company Profile

Quick Details

Brand Name: YONJOU

Model Number: XBD

Place of Origin: Zhejiang, China (Mainland)

Packaging & Delivery

Packaging Details: export plywood case
Delivery Detail: usual 15 days(according to your order quality)

Specifications

XBD Jockey Pump (Fire Water Jockey Pump)

1. The pump head range can be changed by cutting the pump impeller to meet the special needs.

2. The pump according to the operation condition of the worksite, may be vertically, horizontally etc. multiways mounted and also according to the requirements for the flow and stroke, mounted in parallel and/or in series to increase the needed flow and stroke.

Usage:

1. For non-delivery of water and solid particles of similar physical and chemical properties of liquid water use, mainly used for pressurized water fire fighting system

2. Also can be used in factories and mines to the drainage, water pressurized high-rise buildings, long-distance water, pressurized cold water, air-conditioning refrigeration systems and equipment supporting water and so on.

Capacity: up to 25 m³/h

Pressure: up to 2.61 MPa

Turn Speed: 1450 r/min

Power: up to 180 kw

Max medium temperature: 70°c

Special demands can be negotiated.Welcome to visit our company and negotiate business.

Specification performance data table

model	capacity	pressure	speed	effeciency	power	npsh
model	(L/s)	(MPa)	(r/min)	(%)	(Kw)	(NPSH)r(m)
XBD1.8/5-50W	5	0.18	1450	65	2.2	3.2
XBD2.7/5-50W	5	0.27	1450	65	3	3.2
XBD3.6/5-50W	5	0.36	1450	65	4	3.2
XBD4.5/5-50W	5	0.45	1450	65	5.5	3.2
XBD5.4/5-50W	5	0.54	1450	65	5.5	3.2
XBD6.3/5-50W	5	0.63	1450	65	7.5	3.2
XBD7.2/5-50W	5	0.72	1450	65	7.5	3.2
XBD8.1/5-50W	5	0.81	1450	65	7.5	3.2
XBD2.3/10-75W	10	23	1450	68	5.5	3
XBD3.4/10-75W	10	0.34	1450	68	7.5	3
XBD4.6/10-75W	10	0.46	1450	68	11	3
XBD5.5/10-75W	10	0.55	1450	68	11	3
XBD6.9/10-75W	10	0.69	1450	68	15	3
XBD8.0/10-75W	10	0.8	1450	68	15	3
XBD9.2/10-75W	10	0.92	1450	68	18.5	3
XBD10.3/10-75W	10	1.03	1450	68	18.5	3
XBD2.9/20-100W	20	0.29	1450	72	11	3.5
XBD4.3/20-100W	20	0.43	1450	72	15	3.5
XBD5.8/20-100W	20	0.58	1450	72	22	3.5
XBD7.2/20-100W	20	0.72	1450	72	30	3.5
XBD8.6/20-100W	20	0.86	1450	72	30	3.5
XBD10.1/20-100W	20	1.01	1450	72	37	3.5
XBD11.5/20-100W	20	1.15	1450	72	45	3.5
XBD13.0/20-100W	20	1.3	1450	72	45	3.5
XBD4.2/25-125W	25	0.42	1450	73	22	3.5
XBD6.3/25-125W	25	0.63	1450	73	30	3.5
XBD8.4/25-125W	25	0.84	1450	73	45	3.5
XBD10.5/25-125W	25	1.05	1450	73	55	3.5
XBD12.6/25-125W	25	1.26	1450	73	75	3.5
XBD14.7/25-125W	25	1.47	1450	73	75	3.5
XBD16.8/25-125W	25	1.68	1450	73	90	3.5
XBD18.9/25-125W	25	1.89	1450	73	90	3.5
XBD5.8/45-150W	25	0.58	1450	73	45	3
XBD8.7/45-150W	25	0.87	1450	73	75	3
XBD11.6/45-150W	25	1.16	1450	73	90	3
XBD14.5/45-150W	25	1.45	1450	73	110	3
XBD17.4/45-150W	25	1.74	1450	73	135	3
XBD20.3/45/150W	25	2.03	1450	73	155	3
XBD23.2/45-150W	25	2.32	1450	73	180	3
XBD26.1/45-150W	25	2.61	1450	73	180	3

>>>Zhejiang Yonjou Technology Co., Ltd is manufcaturer with 105 emloyees.

It was established in 1995, located in Yongjia country, Wenzhou city, Zhejiang province, borders Lishui on the west, Taizhou on the north, and Fujian to the south.

Our company is specialized in manufacturing high quality oil pump, diaphragm pump, Diesel engine pump set, split& single stage& multistage centrifugal pump etc.
