Refrigeration Units Low Temperature Bitzer Compressor JZB Series Semi-hermetic Box Type Condensing Unit for Food&Vegerable Fre...

FOB Price:

US 1,258-96,989 / Set

Min.Order Quantity:

5 Set/Sets

Supply Ability:

2000 Set/Sets per Month

Port:

Qingdao Sea Port

Place of Origin:

Shandong, China (Mainland)

Payment Terms:

L/C,T/T,Western Union

Brand:

LYTTE

Products Model:

JZB Series

Products Details
Company Profile

Quick Details

Brand Name: LYTTE

Model Number: JZB Series

Place of Origin: Shandong, China (Mainland)

Packaging & Delivery

Packaging Details: Wooden Cases for Easy and Safe Transportation
Delivery Detail: 20-30 days

Specifications

Refrigeration Condensing Unit
1.Top Air Outlet
2.Semi-hermetic Piston Comrpessor
3.CE CRAA ISO
4.Low Noise,Top Quality

Refrigeration Units Box Type JZB Series Bitzer Compressor Condensing Unit for Food and Vegerable Fresh,Cold Room and Quick Freezing

Model Specifications

JZB 05 M B B Y

JZB-LVTE Company Products Code

05-Compressor Power Input(HP)

M-Temperature: M:-5°C~ 5°C L:-20°C~ -15°C

B-A: Air Side Outlet B: Air Top Outlet

B-Compressor: B—BITZER

Y-Refrigerant: Y—R404a; Others—R22

Introduction

According to the demands of the market, LVTE Company self-design and produce semi-hermetic box type Condensing units, application for -5°C~5°C,-20°C~-15°C cold room; JZB Series widely application for hotels, restaurants, food, medicine, chemical industry.

Features

Box type structure with Bitzer compressor with compact and pleasant looking;

Adopted Bitzer Semi-hermetic piston compressor; low Vibration&noise, good reliability;

Copper tube & aluminum fin type heat exchanger, high efficiency and long life;

Built-in junction box;

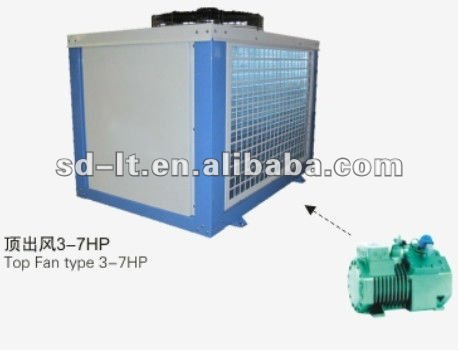

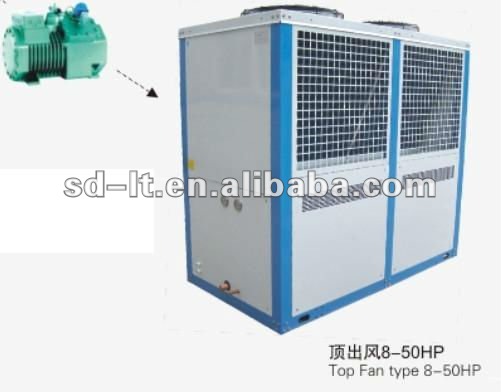

JZB Series are all Top Fan Direction (Air Top Outlet); Model Details

1. Refrigerant: R22

1.1 Temperature:-5°C~ 5°C Models: JZB03MBB---JZB50MBB (3HP-50HP)

2.2 Temperature:-20°C~ -15°C Models: JZB03LBB---JZB40LBB (3HP-40HP)

2. Refrigerant: R404A

2.1 Temperature:-5°C~ 5°C Models: JZB03MBBY---JZB50MBBY (3HP-50HP)

2.2 Temperature:-20°C~ -15°C Models: JZB03LBBY---JZB40LBBY (3HP-40HP)

Applicable Temperature: -5°C~ 5°C

Model JZB-			03MBB	04MBB	05MBB	06MBB	07MBB	10MBB	12MBB
Comperssor Model--Bitzer			2DC3.2	2CC4.2	4FC5.2	4EC6.2	4DC7.2	4VCS10.2	4TCS12.2
Cooling Capacity &Power Input	Evaporation Temperature -5°C	Cooling Capacity(KW)	6.91	8.52	9.83	12.08	14.76	19.58	23.6
	Evaporation Temperature -5°C	PoKWer(KW)	2.98	3.67	4.12	5.12	6.14	7.43	9.13
	Evaporation Temperature -7°C	Cooling Capacity(KW)	6.3	7.77	8.95	11.02	13.47	17.95	21.7
	Evaporation Temperature -7°C	PoKWer(KW)	2.88	3.53	3.98	4.93	5.95	7.19	8.84
	Evaporation Temperature -10°C	Cooling Capacity(KW)	5.44	6.73	7.74	9.54	11.67	15.69	18.96
	Evaporation Temperature -10°C	PoKWer(KW)	2.72	3.33	3.76	4.65	5.65	6.82	8.39
Applicable Room Temperature		°C	-5~5°C

Applicable Temperature: -20°C~ -15°C

Model JZB-			03LBB	04LBB	05LBB	06LBB	08LBB	10LBB	12LBB
Comperssor Model--Bitzer			2CC3.2	4EC4.2	4DC5.2	4CC6.2	4TCS8.2	4PCS10.2	4NCS12.2
Cooling Capacity &Power Input	Evaporation Temperature -20°C	Cooling Capacity(KW)	4.44	6.14	7.26	8.32	11.87	13.77	16.25
	Evaporation Temperature -20°C	PoKWer(KW)	2.79	4.01	4.67	5.67	6.87	7.88	9.2
	Evaporation Temperature -23°C	Cooling Capacity(KW)	3.73	5.21	6.18	6.92	10.06	11.68	13.66
	Evaporation Temperature -23°C	PoKWer(KW)	2.58	3.76	4.4	5.27	6.42	7.32	8.56
	Evaporation Temperature -25°C	Cooling Capacity(KW)	3.31	4.65	5.52	6.06	8.97	10.41	12.17
	Evaporation Temperature -25°C	PoKWer(KW)	2.46	3.57	4.23	5	6.09	6.91	8.09

Products in Factory

Since 2002, LVTE starts to offer HVAC products including Ground Source HEAT PUMP(Geothermal HEAT PUMP, Water to Water HEAT PUMP),Air Source HEAT PUMP,Air Cooled CHILLER, Water Cooled CHILLER,FAN COIL,AHU,Packaged Air Conditioner etc and Refrigerant Equipments for Cold, Freezer, Blast/Quick freezing Rooms including Condensing Units, Air Cooler, Air Cooled Condenser, Evaporator, Cold Room Spare Parts and Accessaries etc. to oversea markets. Up to now, LVTE have already grown up to a group with 5 filiales, 250 employees, and 100,000 Sq.m workshop, and annual production volume 30,000 UNITS heat pumps and over 20000 UNITS chillers and 50000sets of refrigerant equipments. Now we have 2 registered Brand LUTE and LYTTE.

LUTE and LYTTE, the brand name itself means MOST ENERGY SAVING AND ENVIRONMENT PROTECTION.

LVTE employees, LVTE health and safety, plan for employees career development. We listen to our customers and work for their demands, customer satisfaction is the first to achieve. We respect our suppliers and emphasize fair competition for a long term business relationship. LVTE will continue to grow up rapidly and stand a leading place at refrigeration,heat pump technology fields by the help and contribution of LVTE people.

Impressed by the founder of specialist knowledge and experience at HEAT PUMP,CHILLER,Refrigeration fields, helped by the closed cooperation with engineers from world famous refrigerant parts companies . LVTE management team is keen to committed innovation to develop low carbon emissions heat pumps to fight for the cold weather, world warming and power shortage. LVTE heat pumps, such as air source heat pumps, water source heat pumps, geothermal ground source heat pumps,chillers are changing our ways of living, to reduce our foot print.LVTE is consistently create new possibilities to develop new technology for reducing carbon emissions, enhance people's comfort and improve lives.
